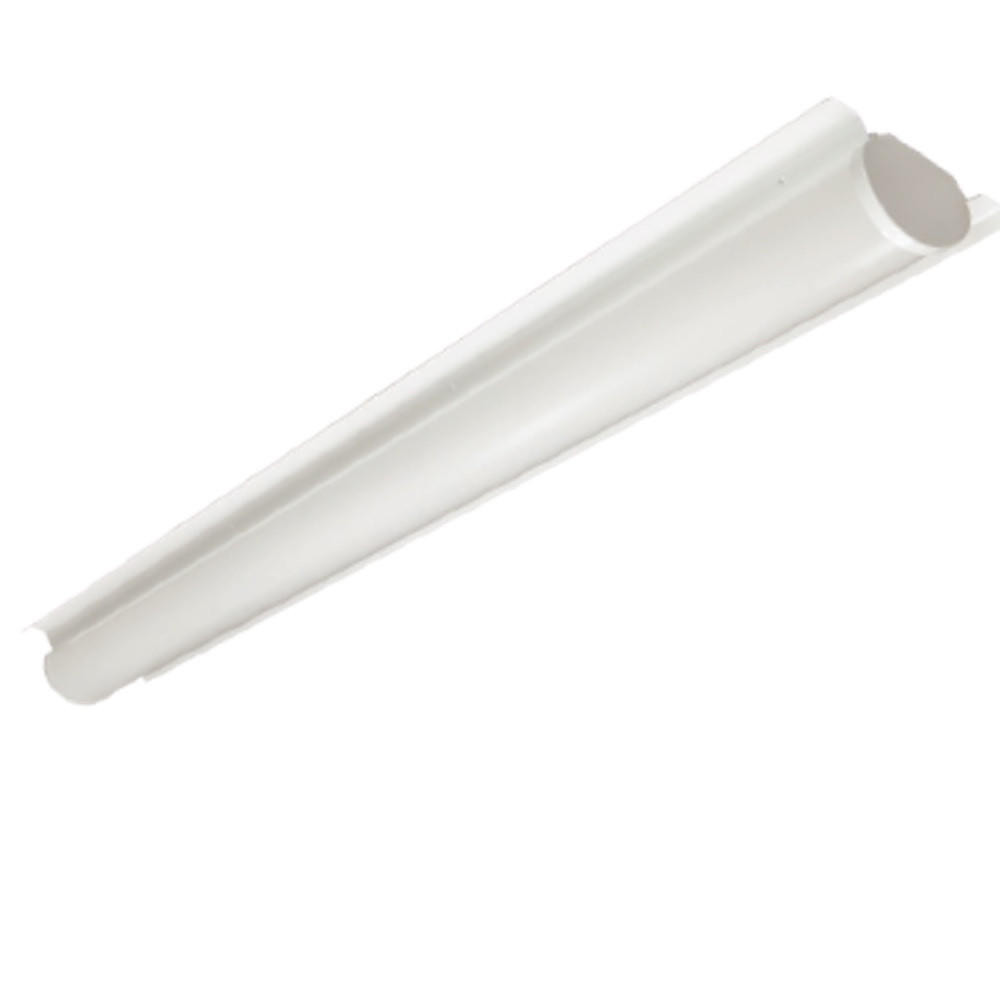

TCPGPR4UZDA835K LED Retrofit Kit | 32W Slim Profile Strip Conversion | Bright 3500K White for Warehouses, Retail, and Storage
The TCP TCPGPR4UZDA835K LED General Purpose Strip Retrofit Kit offers a simple solution for upgrading outdated fluorescent strips to energy-efficient LED technology. Designed to deliver uniform 3500K illumination, this retrofit reduces energy costs by more than 50% compared to fluorescent systems, while extending fixture life and minimizing maintenance requirements.
KEY FEATURES:
- Energy Savings: Uses up to 58% less energy than traditional fluorescent systems, lowering operating costs.
- High Performance: Produces 4200 lumens with excellent color consistency and CRI for bright, uniform lighting.
- Dimmable: Standard 0-10V dimming provides smooth, flicker-free control.
- Durable Construction: Heavy-duty aluminum housing with UV stabilized powder coat finish ensures long-term reliability.
- Low Maintenance: Rated for 50,000 hours, reducing replacement cycles and labor expenses.
APPLICATIONS:
- Ideal for aisles, warehouses, and storage facilities needing consistent illumination.
- Perfect for retail spaces requiring uniform, glare-free light for products and displays.
- Commonly used in manufacturing facilities where durability and energy savings are critical.
SPECIFICATIONS:
- Wattage: 32W
- Lumens: 4,200
- Efficacy: >130 LPW
- Color Temperature: 3500K
- CRI: 80+
- Voltage: 120-277V
- Dimmable: 0-10V standard
- Lifespan: 50,000 hours
- Operating Temperature: -20°C to 50°C
- Power Factor: >0.9
- THD: <20%
- Dimensions: 48” x 5.7” x 2.36”
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed, DLC Premium, RoHS Compliant
- Location Rating: Suitable for damp locations
- Warranty: 5-year limited warranty
