Description

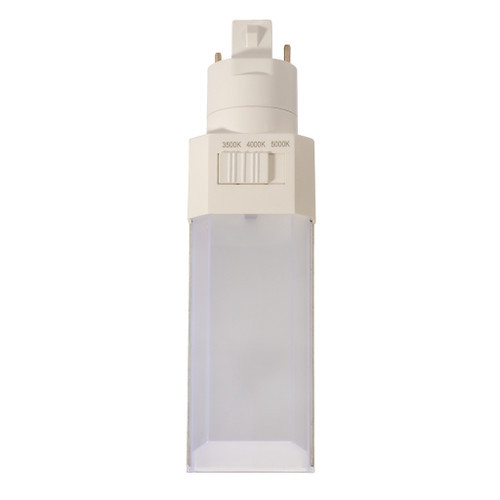

Horizontal PLT Retrofit Lamp | CCT Selectable (3500K/4000K/5000K) For Recessed And Enclosed Damp-Location Fixtures
Built for fast CFL-to-LED upgrades in commercial and hospitality spaces, the Topaz LPLTB-8W-CTSC-H delivers selectable cool-white tones, high efficacy, and long life in a compact horizontal PLT form factor. Its UL Type B ballast-bypass design and rotatable body simplify retrofits while providing consistent, low-maintenance illumination for recessed and enclosed fixtures.
KEY FEATURES:
- CCT Selectable: Choose 3500K, 4000K, or 5000K on installation to match fixture and space.
- Ballast-Bypass Type B: UL Type B design connects without a ballast for direct-wired retrofit installs.
- High Efficacy: Up to 131 LPW with lumen outputs around 1000-1050 lm on just 8W.
- Rotatable Horizontal Profile: Horizontal lamp rotates up to 300° for precise aiming in sconces and recessed cans.
- Durable Construction: White polycarbonate body with aluminum heat sink and frosted lens for even distribution.
APPLICATIONS:
- Ideal for office recessed downlights seeking reduced maintenance and energy use.
- Well suited for hospitality fixtures and wall sconces in hotels and corridors.
- Excellent for retail accent and general lighting where color flexibility is needed.
- Installation Tip: Remove the existing ballast and install as a ballast-bypass (Type B) lamp per local code; suitable for enclosed fixtures where fixture temp does not exceed 113°F.
SPECIFICATIONS:
- Product Code: LPLTB-8W-CTSC-H
- Topaz by Halco SKU: T73657
- Wattage: 8W
- Lumens: 1000 / 1050 / 1050 lm
- Efficacy: Up to 131 LPW
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 83
- Voltage: 120-277V
- Base Type: G24D
- Beam Angle: 120°
- Average Life: 50,000 hrs
- Dimmable: No
- Power Factor: 0.90
- Operating Temp: -20°C (-4°F) to 45°C (113°F)
- Warranty: 5-year warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed / UL Classified, RoHS Compliant
- Location Rating: Suitable For Damp Locations; Approved For Enclosed Fixtures (≤113°F)
