Description

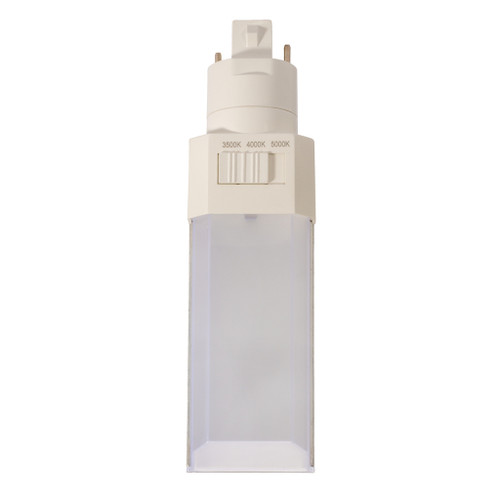

3-CCT Selectable PLT Lamp | Type B Ballast-Bypass Retrofit For Damp Indoor Recessed And Wall Sconce Applications
Topaz LPLTB-8W-CTSW-H simplifies retrofits by delivering three switchable warm-white tones in a compact PLT horizontal form factor that installs via Type B ballast bypass-cutting energy use and maintenance for recessed cans and wall sconces.
KEY FEATURES:
- 3-CCT Selectable (Warm): Switch between 2700K, 3000K, and 3500K to suit ambiance and task needs.
- Simple Type B Installation: Ballast-bypass design connects directly without a ballast for quick retrofits.
- High Efficacy: Up to 131 LPW with lumen output of ~950-1,000 lm from only 8W.
- Durable Construction: White polycarbonate body, aluminum heat sink and frosted lens for long service life.
- Rotatable: Horizontal model rotates up to 300° for aiming in enclosed fixtures.
- Long Life & Warranty: Rated 50,000 hours with a 5-year limited warranty.
APPLICATIONS:
- Ideal for commercial and office recessed lighting upgrades.
- Well suited to hospitality and retail wall sconces and indoor accent fixtures.
- Good choice for residential-to-commercial retrofit projects in damp-rated indoor areas.
- Usage Tip: Install in enclosed fixtures where internal temperature remains below 113°F and confirm Type B wiring per local code.
SPECIFICATIONS:
- Product Code: LPLTB-8W-CTSW-H
- Topaz by Halco SKU: T73656
- Wattage: 8W
- Lumens: 950-975-1000 lm
- Color Temperature: CCT Selectable (2700K / 3000K / 3500K)
- CRI: 83
- Base Type: G24D
- Voltage: 120-277V
- Dimmable: No
- Average Life: 50,000 hours
- Beam Angle: 120°
- Power Factor: 0.9
- Input Frequency: 60Hz
- Operating Temp: -20°C to 45°C (-4°F to 113°F)
- Sold In Multiples Of: 1
- Master Carton Size: 50
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL Classified; RoHS compliant
- Location Rating: Suitable For Damp Locations; Suitable For Enclosed Fixtures (Max Fixture Temp 113°F)
- Warranty: 5-year limited warranty
