Description

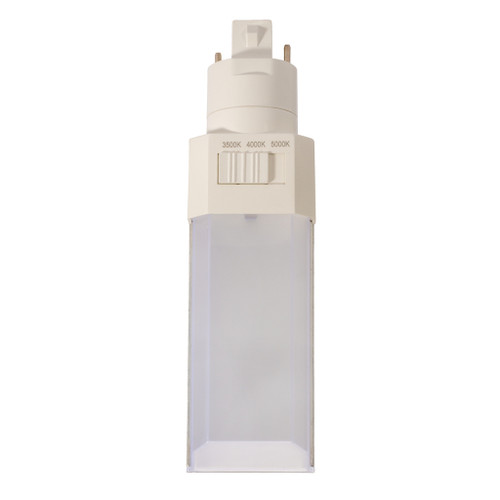

PLT Retrofit Type B Lamp | CCT Selectable (3500K/4000K/5000K) For Damp Locations, Enclosed Fixtures And Recessed Lighting
Topaz LPLTB-8W-CTSC-V is a 3-CCT selectable PLT vertical retrofit lamp designed to simplify ballast-bypass upgrades in recessed cans and enclosed fixtures. It delivers up to 1,050 lumens while reducing energy use versus pin-based CFLs and extends service life for commercial and hospitality environments.
KEY FEATURES:
- Type B Ballast Bypass: UL Type B design connects directly without a ballast for straightforward retrofit installs.
- 3-CCT Selectable: Switch between 3500K, 4000K, or 5000K to match existing lighting or task needs.
- Efficient Performance: 8W operation with up to 131 LPW efficacy and 1,000-1,050 lumens output.
- Durable Construction: White polycarbonate body with aluminum heat sink and frosted lens for reliable, enclosed-fixture operation.
- Long Life: Rated for 50,000 hours to reduce maintenance and replacement frequency.
APPLICATIONS:
- Commercial recessed downlights and grid fixtures.
- Office lighting and corridor fixtures.
- Hospitality and retail wall sconces and enclosed luminaires.
- Usage Tip: Install as a Type B ballast-bypass replacement and ensure fixture temperature does not exceed 113°F (45°C).
SPECIFICATIONS:
- Product Code: LPLTB-8W-CTSC-V
- Topaz by Halco SKU: T73659
- Manufacturer: Topaz
- Wattage: 8W
- Lumens: 1000-1050 lm
- Color Temperature: CCT Selectable (3500K / 4000K / 5000K)
- CRI: 83
- Base Type: G24D
- Voltage: 120-277V
- Beam Angle: 120°
- Average Life: 50,000 hours
- Power Factor: 0.9
- Dimmable: No
- Sold In Multiples Of: 1
- Master Carton Quantity: 50
- UPC: 751338040588
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Classified
- Environment Rating: Suitable For Damp Locations; Suitable For Enclosed Fixtures (Max Fixture Temp 113°F / 45°C)
- RoHS: Yes
- Warranty: 5-year limited warranty
