4ft LED Linear Suspension Strip Light

SKU:
ML-MLF03-36W27VDDK-Aircraft-LH-A
Typically ships in 2-3 business days* View full description
Sale
$69.99
$49.89
Customer Reviews

Description

Narrow Hanging LED Fixture - Adjustable Aircraft Cable Mount - Power and CCT Selectable

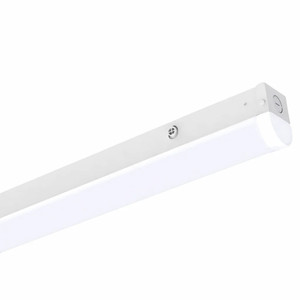

4ft LED Linear Suspension Strip Light with Adjustable Aircraft Cable Wire Mounting - LBS MLF03 Series

Experience versatile and efficient lighting with the LBS MLF03 Series 4ft LED Linear Suspension Strip Light. Designed for both functionality and aesthetics, this lightweight and adjustable fixture is perfect for commercial settings, warehouses, parking lots, corridors, and retail spaces.

Key Features:

  • Adjustable Wattage and CCT: Offers seven power levels from 18W to 36W and three color temperatures (3500K, 4000K, 5000K), easily adjustable via simple switches to accommodate various lighting needs and reduce SKU complexity.
  • Glare Reduction: Features a meticulously designed optical system that effectively minimizes glare, providing a comfortable lighting environment.
  • Flexible Mounting Options: Includes V-hook, surface, and aircraft cable mounting options. Chain mount also available separately.
  • Dimming Capability: Equipped with 0-10V standard dimming to adjust light intensity from 100% to 10%.
  • Energy Efficiency: Boasts a power factor over 90% and total harmonic distortion less than 20%.
  • Durability and Longevity: Constructed to last, with an estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
  • Environmental Suitability: Operates effectively in temperatures ranging from -25°C to 40°C (-13°F to +104°F). When using the emergency battery, the operational temperature range is 5°C to 40°C (+41°F to +104°F).
  • Certifications: UL and cUL listed for damp locations, ensuring safety and quality.

Warranty and Support:

  • Comes with a five-year limited warranty, providing peace of mind and assurance of quality.

Technical Specifications:

  • Input Voltage: Universal 120-277 VAC
  • Lumens: Up to 5200lm at 144 lm/W efficiency depending on the CCT and wattage setting.
  • Construction: Features durable, high-quality materials for extended use and reliability.

This LED Linear Suspension Strip Light is designed to meet the diverse needs of modern commercial and industrial environments, providing a combination of performance, energy efficiency, and ease of installation. The versatile design and adjustable settings make it an ideal choice for a wide range of applications.

Downloads


Disclaimers

*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.

**These items are light weight (about 6 lbs) but UPS/FED Ex charge a dimensional weight surcharge, which result in higher freight charges.



Extra Information

Brand:
LBS Lighting
Order Code:
MLF03-36W27VDDK-Aircraft-LH-A
Light Source:
LED
Fixture Type:
Suspension Ceiling
Fixture Style:
Industrial
Fixture Shape:
Linear
Fixture Application:
Area, General
Fixture Environment:
Indoor
Fixture Finish:
White
Mounting:
Suspension
Wattage:
Selectable
Selectable Wattage:
36W/30W/24W/18W
Lumens:
5000lm to 2580lm
Color Temperature:
CCT Selectable
Selectable CCT:
3500K, 4000K, 5000K
Shade/Lens Color:
White Frosted Translucent
Voltage:
120V to 277V
Shade/Lens Material:
Acrylic
Depth (in.):
2.60
Width (in.):
46.60
Height (in.):
2.70
CRI:
> 80
Case Quantity:
1
Warranty:
5 Year

Warranty Information

5 Years
