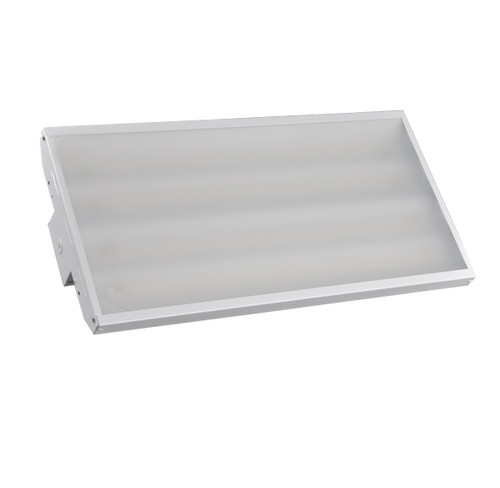

LHB-3-WS-50-U-LVMS Highbay For Warehouses & Gyms | Daylight 5000K With Low-Voltage PIR Sensor, Selectable Wattage
Engineered for large commercial and industrial spaces, the Halco LHB-3-WS-50-U-LVMS ProLED Select Linear Highbay replaces legacy HID and fluorescent systems with a long-life, energy-saving LED solution. Delivering 30,000 lumens, selectable wattages, and an integrated low-voltage PIR motion sensor, it reduces energy consumption and maintenance in warehouses, gyms, and big-box retail installations.
KEY FEATURES:
- Wattage Selectable: Choose 220W, 200W, or 180W to match lighting levels and energy goals.
- Integrated Motion Sensing: Low-voltage PIR sensor included to reduce runtime in low-traffic areas and boost savings.
- High Output: 30,000 lumens provides bright, uniform illumination for large spaces.
- Universal Voltage: Operates on 120-277V and 347-480V for flexible installation.
- Long Life & Reliability: Rated for 100,000 hours with DLC 5.1 Premium listing for rebate eligibility and performance.
- Accessories Included: Supplied with Chain & V Hook for quick mounting.
APPLICATIONS:
- Ideal for distribution warehouses and high-bay storage areas.
- Well suited for gymnasiums and big-box retail environments requiring high output lighting.
- Appropriate for manufacturing floors and industrial production areas.
- Usage Tip: Enable the integrated PIR sensor in infrequently occupied zones to maximize energy savings.
SPECIFICATIONS:
- Wattage: Selectable 220W, 200W, 180W
- Lumens: 30,000
- Color Temperature: 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Average Life: 100,000 hours
- Warranty: 5 years
- Power Factor: 0.9
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Included Accessory: Chain & V Hook and Low Voltage PIR Motion Sensor
- Sold In Multiples Of: 1
- Weight Per Item: 16.5
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Market: Commercial, Industrial
