Description

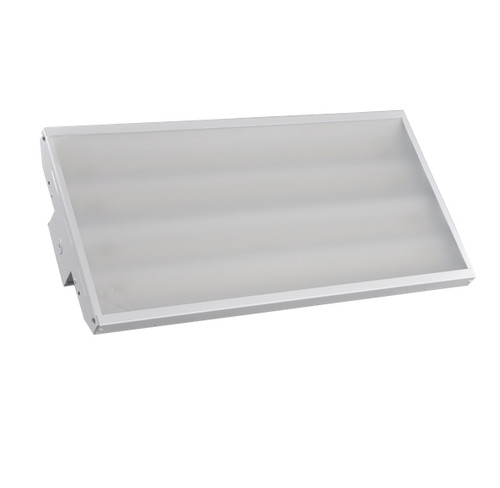

LHB-1-WS-40-U-PIRMS Selectable Linear Highbay | Cool White 4000K Fixture With PIR Sensor And Universal Voltage
Engineered for warehouses, retail big-boxes, and industrial gyms, this Halco ProLED Select Linear Highbay streamlines upgrades with selectable power levels and integrated PIR motion sensing to lower runtime and maintenance while delivering consistent Cool White illumination.
KEY FEATURES:
- Selectable Power Levels: Choose 110W, 90W, or 70W to match ceiling heights and task requirements.
- High Output: 15,000 lumens provides bright, uniform wide-beam illumination for large spaces.
- Integrated Controls: Built-in PIR motion sensor reduces energy use by switching lighting based on occupancy.
- Universal Voltage: Compatible with 120-277V and 347-480V systems for flexible installation.
- Dimmable: 0-10V dimming capable for additional energy savings and control integration.
- Rugged Construction: Steel housing with frosted polycarbonate lens and white finish for durable, low-glare performance.
- Long Life: Rated for 100,000 hours to minimize maintenance and replacement costs.
APPLICATIONS:
- Ideal for distribution warehouses and manufacturing facilities requiring consistent high-bay illumination.
- Well suited for retail big-box stores and gymnasiums where uniform light and motion control improve energy efficiency.
- Perfect for retrofit and new-construction commercial/industrial installations with varying ceiling heights.
- Usage Tip: Use the selectable wattage setting with the PIR sensor to optimize runtime and energy savings for each zone.
SPECIFICATIONS:
- Wattage: Selectable 110W, 90W or 70W
- Lumens: 15,000
- Color Temperature: 4000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Average Life: 100,000
- Power Factor: 0.9
- Beam Type: Wide
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHs Compliant, FCC
- Emergency Backup: Available (not necessarily included)
