Description

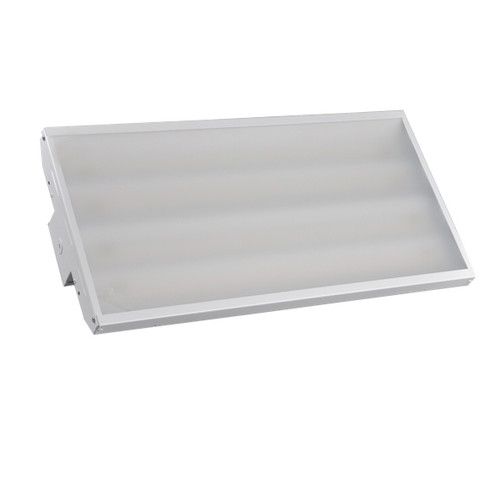

LHB-2-WS-50-U-PIRMS Selectable Linear Highbay Fixture | Daylight 5000K | 160/135/110W Wattage Select With Integrated PIR Sensor
Reduce energy and maintenance costs in large commercial spaces with this Halco selectable linear highbay. The fixture delivers bright Daylight output, offers three field-selectable wattages, and ships with an integrated PIR motion sensor and mounting accessories to simplify installation and improve occupancy-based savings.
KEY FEATURES:
- Selectable Output: Choose 160W, 135W, or 110W on installation to match existing lighting levels and reduce energy use.
- Integrated Occupancy Control: Built-in PIR motion sensor enables automatic on/off control to cut runtime in low-traffic periods.
- Robust Performance: Produces 21,500 lumens with wide beam distribution for uniform illumination of large areas.
- Long Life & Reliability: Rated for 100,000 hours and backed by a 5-year warranty to minimize relamping and service downtime.
- Controls Ready: 0-10V dimming compatibility and integrated control options support advanced lighting strategies.
- Durable Construction: White steel housing with frosted polycarbonate lens resists industrial wear.
APPLICATIONS:
- Distribution warehouses and fulfillment centers needing high-output, low-maintenance lighting.
- Big box retail and manufacturing floors where uniform, high-lumen output is required.
- Gymnasiums and large indoor recreational spaces seeking bright, glare-controlled illumination.
- Usage Tip: Use the wattage selection feature to dial-in light levels and maximize energy savings while meeting site requirements.
SPECIFICATIONS:
- Wattage: 160W / 135W / 110W (Selectable)
- Lumens: 21,500
- Color Temperature: Daylight 5000K
- CRI: 80
- Voltage: 120-277V & 347-480V
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- Power Factor: 0.9
- Beam Type: Wide
- Finish: White
- Lens: Frosted Polycarbonate
- Housing Material: Steel
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Warranty: 5 years
- Sold In Multiples Of: 1
- Weight per Item: 16
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Location Rating: Suitable for commercial and industrial installations
- Operating Temp Range: -40C (-40F) to 55C (131F)
