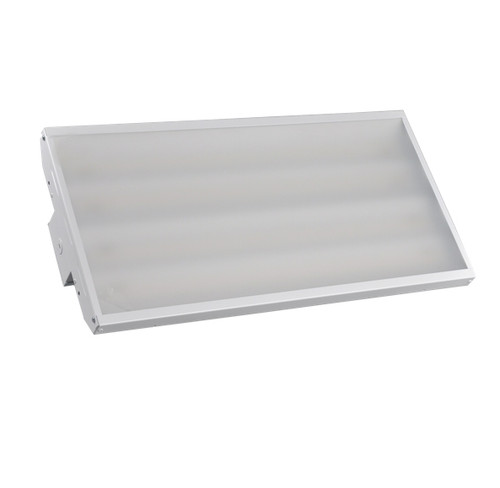

LHB-3-WS-50-U-PIRMS High Bay LED Fixture | Daylight 5000K Warehouse And Retail Lighting With PIR Sensor & Selectable Wattage
Engineered for large commercial and industrial spaces, this ProLED Select linear highbay delivers high-output, energy-saving illumination with flexible wattage settings and an integrated PIR motion sensor to cut runtime and maintenance costs.
KEY FEATURES:
- Wattage Selectable: 220W / 200W / 180W for on-site lumen tuning and energy optimization.
- High Output: 30,000 lumens provides bright, uniform coverage for expansive interiors.
- Integrated Motion: Includes PIR motion sensor for occupancy-based control and reduced energy use.
- Dimmable: 0-10V dimming compatibility for additional control strategies.
- Long Life & Warranty: 100,000 hour rated life with a 5-year limited warranty.
APPLICATIONS:
- Distribution warehouses and bulk storage facilities.
- Big box retail and grocery stores.
- Gymnasiums and manufacturing shop floors.
- Tip: Use the selectable wattage to match required lux levels while minimizing operating costs.
SPECIFICATIONS:
- Wattage: Selectable 220W / 200W / 180W
- Lumens: 30,000
- Color Temperature: 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Power Factor: 0.9
- Average Life: 100,000 hours
- Beam Type: Wide
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Weight per Item: 16.5
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Emergency Backup: Available
- Integrated Controls: Available
- Operating Temp Range: -40C to 55C (-40F to 131F)
