Description

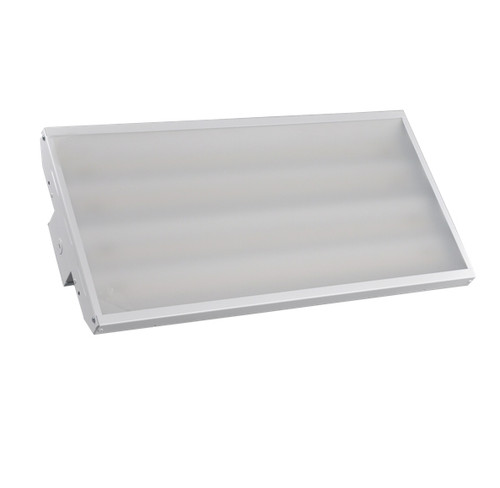

LHB-4-WS-50-U-PIRMS Selectable Linear High Bay | Daylight 5000K High-Output Fixture With PIR Sensor, Universal Voltage
Designed for large indoor commercial spaces, the Halco ProLED Select Linear Highbay delivers flexible high-output illumination with selectable wattage and onboard motion sensing to cut energy use and simplify maintenance. Its versatile mounting accessories and universal voltage make it a straightforward upgrade for warehouses and high-ceiling retail environments.
KEY FEATURES:
- Wattage Selectable: Choose 320W, 280W, or 240W to match required light levels and energy targets.
- Integrated Motion Sensor: Includes PIR motion sensor for demand-driven energy savings in intermittent-occupancy areas.
- Universal Voltage: Operates on 120-277V and 347-480V configurations for installation flexibility.
- Long Life & Reliability: 100,000 hour average life with DLC 5.1 Premium listing and UL recognition.
- Controls Ready: 0-10V dimming compatibility and support for emergency backup and integrated controls.
APPLICATIONS:
- Distribution warehouses and logistics centers.
- Big box retail and high-bay showroom floors.
- Manufacturing facilities and gymnasiums requiring high lumen output.
- Installation Tip: Use the included chain and V-hook for secure mounting and set wattage to balance brightness with energy goals.
SPECIFICATIONS:
- Wattage: Selectable 320W, 280W or 240W
- Lumens: 43,000
- Color Temperature: 5000K (Daylight)
- CRI: 80
- Voltage: 120-277V & 347-480V
- Dimmable: Yes (0-10V)
- Average Life: 100,000
- Beam Type: Wide
- Power Factor: 0.9
- Min/Max Operating Temp: -40C (-40F) to 55C (131F)
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Weight Per Item: 26.7
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium - UL Listed - RoHS Compliant - FCC
- Warranty: 5 years
- Market: Commercial, Industrial
