Description

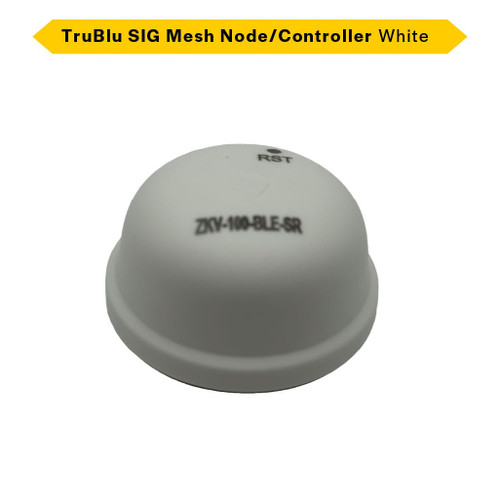

PSC-ZKV-WCM-100-BLE-SR-WT Wireless Zhaga Z-10 Node | Bluetooth-Enabled Mesh Control, 0-10V Dimming & Photocell For Highbays
Designed to simplify wireless lighting control for area lights and high‑bay fixtures, the Halco 25417 TruBlu SIG Mesh controller reduces wiring, enables zoning, and delivers reliable Bluetooth‑enabled dimming and integrated photocell functionality for indoor and outdoor installations.
KEY FEATURES:
- Wireless Mesh Node: TruBlu Bluetooth‑enabled control enables zoning and remote management without extra control wiring.
- 1-Channel 0-10V Dimming: Provides smooth dimming for a wide range of LED luminaires.
- Integrated Photocell: Built‑in photosensor supports daylight harvesting but cannot be used with a separate photocell sensor.
- Zhaga Z-10 Receptacle: Compact Zhaga Z‑10 mount for quick fixture integration.
- Rugged Outdoor Design: IP65 Wet Location rating for area lights and high‑bay applications.
- Flexible Configuration: Configure and manage via MC Connect TruBlu web portal or iOS phone app.
- Wide Operating Range: Operates at 12-24VDC with Bluetooth range up to 100 ft.
APPLICATIONS:
- Ideal for area lights, parking lot poles, and outdoor wall fixtures.
- Well suited for warehouse and gym high‑bay retrofit installations.
- Effective for perimeter and security lighting in commercial and industrial sites.
- Installation Tip: Use fixtures with a Zhaga Z‑10 receptacle and do not pair with a separate photocell sensor.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Brand: Halco
- UPC: 807154254170
- Technology: LED
- Applications: Indoor and Outdoor fixtures mounted up to 40 ft requiring Bluetooth control
- Market: Commercial, Industrial
- Warranty: 5 years
- Operating Temp Range: -30C (-22F) to 70C (158F)
- Voltage: 12-24VDC
- Dimming: 0-10V, 1-Channel
- Mount Options: Zhaga Z-10 Receptacle
- Finish: White
- Environment: Wet Location
- IP Rating: IP65
- Certifications: Bluetooth NLC Certified; UL Listed; FCC; CE
- Bluetooth Range: Up to 100 ft
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: Bluetooth NLC Certified, UL Listed, FCC, CE
- Location Rating: Suitable for wet locations
- Warranty: 5-year
Downloads
Disclaimers
*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
