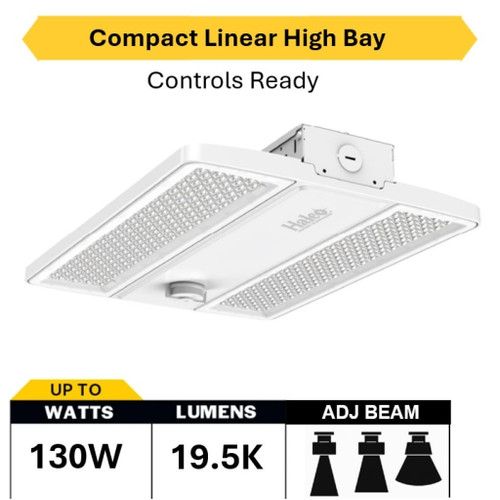

CLHB-1-LS-CS-U Compact Linear Highbay Fixture | Field-Selectable Lumens & Beam Angles, Zhaga Z-10 Sensor Ready | CCT Selectable
The Halco CLHB compact linear highbay simplifies high-ceiling installations by combining field-selectable lumen output, CCT, and beam-angle adjustment in a single, installer-friendly fixture. Its die-cast aluminum housing, integrated Zhaga Z-10 receptacle for plug-and-play controls, and included suspension hardware help reduce install time while delivering versatile, high-performance illumination for large indoor spaces.
KEY FEATURES:
- Field-Selectable Output: Choose 14,600, 17,100 or 19,500 lumens on-site to match space needs.
- Wattage Selectable: Select 90W, 110W or 130W to optimize energy use and light levels.
- CCT & Beam Flexibility: Selectable color temperatures (3500K, 4000K, 5000K) and adjustable beam angles (Narrow, Standard, Wide) via simple switches.
- Sensor-Ready Controls: Zhaga Z-10 receptacle enables plug-and-play occupancy and wireless control options.
- Durable Construction: Die-cast aluminum housing with polycarbonate lens for long-term performance.
- Included Hardware: Suspension chain and V-hooks included for quick mounting.
- 0-10V Dimmable: Compatible with standard 0-10V dimming systems for zoned control.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring flexible light levels.
- Well suited for gymnasiums and indoor sports facilities.
- Designed for big-box retail and commercial spaces that need scalable illumination.
- Installation Tip: Use the Zhaga Z-10 receptacle with compatible sensors to enable occupancy-based dimming and maximize energy savings.
SPECIFICATIONS:
- Wattage: 90W, 110W, 130W
- Lumens: 14,600 / 17,100 / 19,500 LM
- Average Life: 100,000 hours
- Color Temperature: 3500K, 4000K, 5000K
- CRI: 80
- Beam Angle: 90x90, 45x100, 65x90 degrees
- Beam Type: Selectable Narrow, Standard, or Wide
- Dimmable: Yes (0-10V)
- Power Factor: 0.9
- Operating Temperature: -40C to 55C (-40F to 131F)
- Warranty: 5 years
- Finish: White
- Lens: Polycarbonate
- Housing Material: Die-cast aluminum
- Included Accessory: Suspension chain & V-hooks
- IP Rating: IP20
- Location Rating: Damp
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium, UL Listed, FCC, RoHS
- Market: Commercial, Industrial
- Mount Options: Pendant and U-bracket mounts available separately
