Description

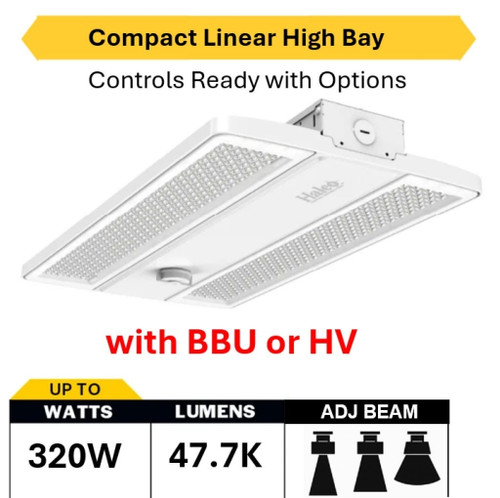

CLHB-4-LS-CS-U Compact LED High Bay Fixture | Daylight 5000K | Zhaga Z-10 Sensor-Ready For Warehouses, Retail And Gymnasiums
Engineered for commercial and industrial spaces, the Halco CLHB compact linear high bay streamlines installation and inventory with field-selectable lumen output, CCT, and beam angle. The die-cast aluminum housing and integrated Zhaga Z-10 receptacle enable plug-and-play sensor integration for energy savings, simplified controls, and reduced maintenance over legacy HID systems.
KEY FEATURES:
- Field-Selectable Output: Choose 240W, 280W, or 320W on site to match lighting levels and reduce SKUs.
- High Lumen Performance: Configurable lumen outputs of 38,600 / 43,300 / 47,700 LM to brighten large indoor spaces efficiently.
- Color & Beam Flexibility: Selectable CCT (3500K, 4000K, 5000K) and adjustable beam angles (Narrow, Standard, Wide) for tailored distribution.
- Control-Ready: Built-in Zhaga Z-10 receptacle for plug-and-play sensor and wireless control options (gateways sold separately).
- Installer-Friendly: Includes suspension chain and V-hooks for fast mounting; die-cast aluminum housing for durable heat dissipation.
- Dimmable & Reliable: 0-10V dimming capable with 100,000-hour rated life and a 5-year warranty.
APPLICATIONS:
- Warehouses and distribution centers requiring high-output, long-life illumination.
- Gymnasiums and indoor sports facilities where adjustable beam and lumen levels improve uniformity.
- Retail and big-box environments needing flexible CCT and lumen options for shelf and floor displays.
- Usage Tip: Set lumen and CCT on site to match ceiling height and task requirements, then add Zhaga sensors for occupancy-aware dimming.
SPECIFICATIONS:
- Wattage: Selectable 240W, 280W, or 320W
- Lumens: 38,600 / 43,300 / 47,700 LM
- Average Life: 100,000 hours
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Beam Angle: 90x90, 45x100, or 65x90 Deg (Selectable Narrow, Standard, Wide)
- Power Factor: 0.9
- Operating Temperature: -40°C to 55°C (-40°F to 131°F)
- IP Rating: IP20
- Mount Included: Suspension Chain & V-Hooks
- Finish: White
- Housing: Die-cast aluminum
- Weight: 11.8 lbs
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC Qualified: DLC 6.0 Premium
- Safety Listings: UL Listed
- Environmental: RoHS compliant; Suitable for Damp Locations
- Warranty: 5-year limited warranty
