Description

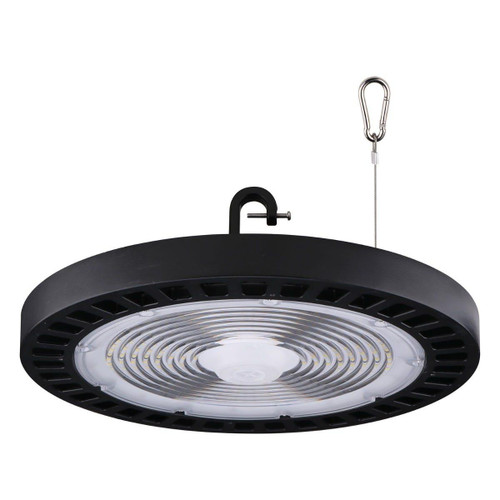

ERHB-200-50-U High-Efficacy Round Highbay For Warehouses And Retail | Daylight (5000 K) | IP65 Wet Rated | 0-10V Dimming
Upgrade large indoor spaces with a durable, high-efficacy LED highbay that reduces energy use and maintenance. The Halco ProLED Essential Round Highbay ships with an integrated 6' cord and 1/2" NPT steel hook for fast installation, built-in surge protection, and a weatherproof IP65 housing to stand up in demanding warehouse and retail environments.
KEY FEATURES:
- High Efficacy: 140 LPW performance reduces energy consumption versus legacy HID fixtures.
- Robust Construction: Die-cast aluminum housing with powder coat finish and polycarbonate lens for long service life.
- Wet Location Rated: IP65 rating protects against dust and water for indoor and covered outdoor installations.
- Integrated Protection: Built-in 6kv driver surge protection improves reliability in industrial settings.
- Quick Install: Includes 6' cord and 1/2" NPT steel hook for fast mounting; optional yoke and pendant accessories are available.
APPLICATIONS:
- Warehouses
- Gymnasiums
- Big Box And Retail Stores
- Tip: Mount at recommended heights to maximize spacing and uniformity for high-bay applications.
SPECIFICATIONS:
- Wattage: 200W
- Lumens: 28000
- Efficacy: 140
- Color Temperature: 5000K
- CRI: >80 CRI
- L70 Lifetime (Hrs): >50,000Hrs
- Voltage: Universal 120-277VAC
- Amperage: 120VAC (1.67A) 277VAC (0.72A)
- Power Factor: 0.9
- Dimming: 0-10VDC Dimming
- Surge Protection: 6kv Driver Surge Protection
- Housing: Die-cast Aluminum with Powder Coated Finish
- Lens: Polycarbonate Lens
- Operating Temperature: -30°C to 50°C
- Listings: UL, cUL, DLC Premium, FCC, RoHS
- Environment: IP65 Wet Rated
- Warranty: 5 Years Standard
