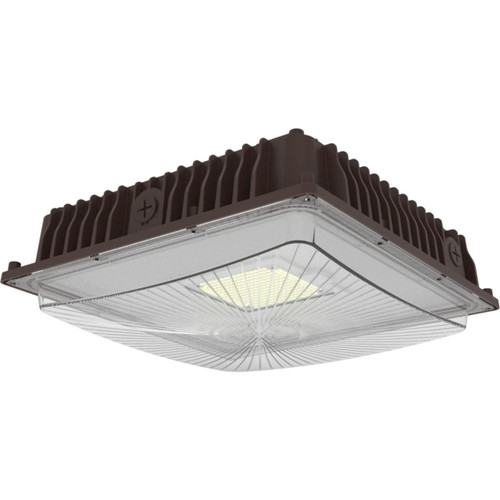

CSP-28-CS-U-BZ Low-Profile Slim Canopy Fixture For Exterior Covered Areas | CCT Selectable | IP65 Wet Location | Quick-Install Mounting Plate
Delivering selectable white light and high efficacy in a low-profile package, the Halco ProLED Select Slim Canopy simplifies retrofits for covered outdoor areas with a removable quick-install mounting plate that reduces installation time and maintenance visits.
KEY FEATURES:
- Field-Selectable CCT: Choose 3000K, 4000K or 5000K on-site to match application needs without changing fixtures.
- High Efficacy: Up to 135 LPW for lower energy use and reduced operating costs versus HID alternatives.
- Wet-Location Rated: IP65 housing and UL Wet Location listing provide reliable performance in exterior covered environments.
- Contractor-Friendly: Removable quick-install mounting plate enables fast, secure mounting and easier wiring.
- Built-In Protection: Integrated 4kV surge protection and 0-10V dimming support resilient, flexible installations.
APPLICATIONS:
- Exterior canopies and gas station islands.
- Parking garage ceilings and covered parking areas.
- Carports, breezeways, and stairwell coverings.
- Usage Tip: Install in covered locations and use the onboard CCT selector to match adjacent fixtures for uniform appearance.
SPECIFICATIONS:
- Wattage: 28W
- Lumens: 3,500 (3000K); 3,780 (4000K); 3,640 (5000K)
- Efficacy: 125 LPW (3000K); 135 LPW (4000K); 130 LPW (5000K)
- Color Temperature: CCT Selectable (3000K-4000K-5000K)
- CRI: >70
- Voltage: Universal 120-347VAC
- Dimming: 0-10V Dimming
- Surge Protection: 4kV
- L70 Lifetime: >100,000 Hours @ 25°C
- Listings: cULus; DLC 5.1 Premium; FCC; RoHs; UL Listed for Wet Locations; IP65 Rated
- Housing: Die-cast aluminum with powder coated finish
- Lens: Polycarbonate
- Operating Temperature: -40°C to 55°C
- Power Factor: >.90
- Weight: 5.04 lbs
- Warranty: 5 Years Standard
