Description

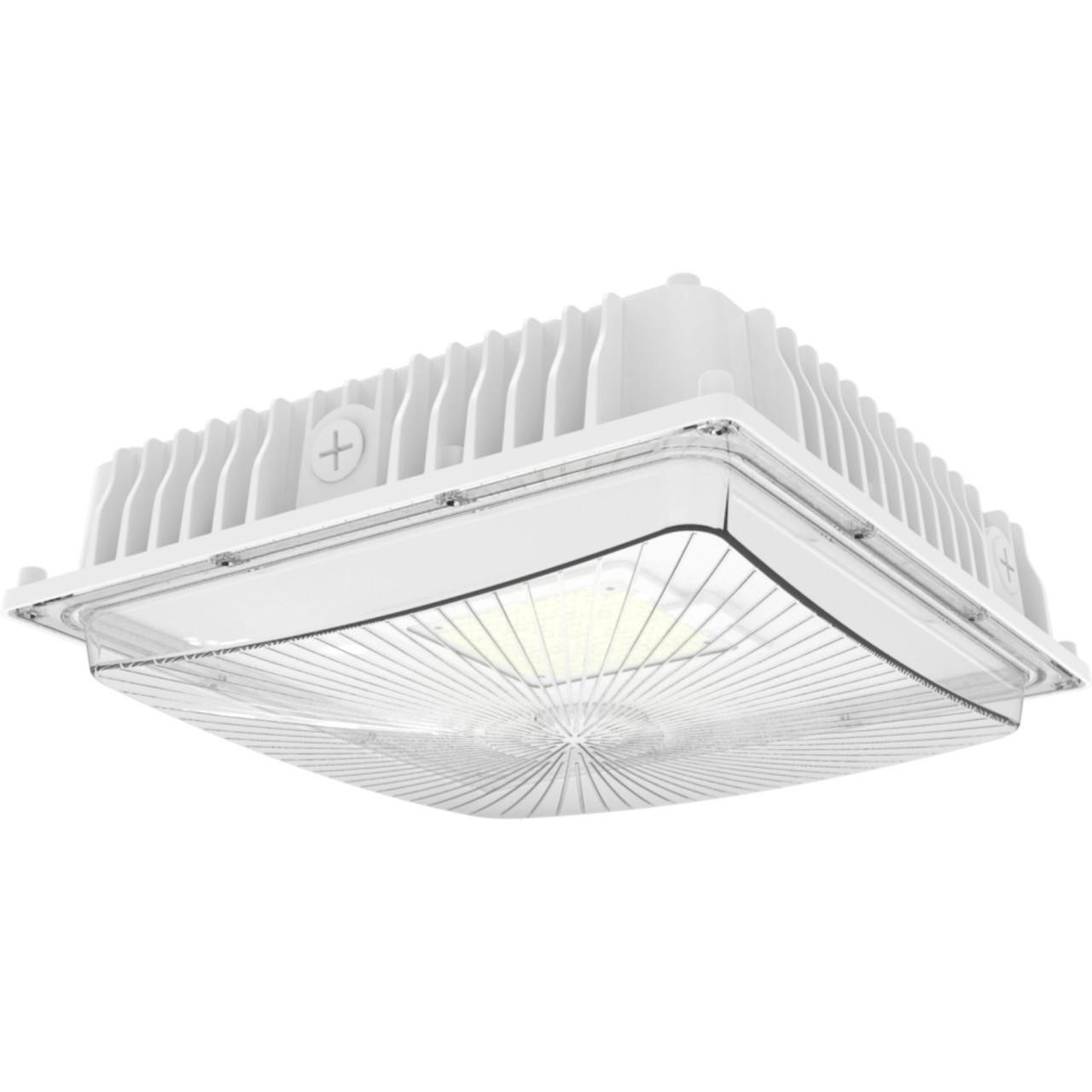

CSP-40-CS-U-WH Low-Profile Slim Canopy For Covered Outdoor Spaces | CCT Selectable | 0-10V Dimming & IP65 Wet Location
Designed for fast retrofit and new-build canopy installations, the Halco ProLED Select Slim Canopy streamlines contractor work with a removable mounting plate, field-selectable CCT, and durable weather-ready construction to minimize maintenance and installation time on covered outdoor projects.
KEY FEATURES:
- Field-Selectable CCT: Choose 3000K, 4000K or 5000K on-site to match existing lighting and reduce stocking complexity.
- Quick Install: Removable mounting plate enables fast, secure installation and lowers labor costs.
- Rugged Construction: IK09 die-cast aluminum housing and tamperproof polycarbonate lens deliver long-term durability.
- Advanced Controls: Integrated 0-10V dimming and optional RF occupancy sensing support energy savings and flexible control strategies.
- Protected Performance: Built-in 4kV surge protection and IP65 wet-location rating for reliable outdoor operation.
APPLICATIONS:
- Exterior canopies.
- Parking garages.
- Carports.
- Tip: Mount in covered areas and use 0-10V controls to optimize light levels and energy use.
SPECIFICATIONS:
- Wattage: 40W
- Lumens (3000K): 5,000
- Efficacy (3000K): 125 LPW
- Lumens (4000K): 5,400
- Efficacy (4000K): 135 LPW
- Lumens (5000K): 5,200
- Efficacy (5000K): 130 LPW
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >70
- Voltage: Universal 120-347VAC
- Dimming: 0-10VDC
- Surge Protection: 4kV
- L70 Lifetime: >100,000 Hours @ 25°C
- Listings: cULus, DLC Premium, FCC; UL Listed for Wet Location (IP65)
- Housing: Die-cast aluminum with powder coated finish
- Lens: Polycarbonate
- Operating Temperature: -40°C to 55°C
- Amperage: 120VAC (0.33A) / 277VAC (0.15A)
- Weight: 5.17 lbs
- Warranty: 5 Years Standard
