Description

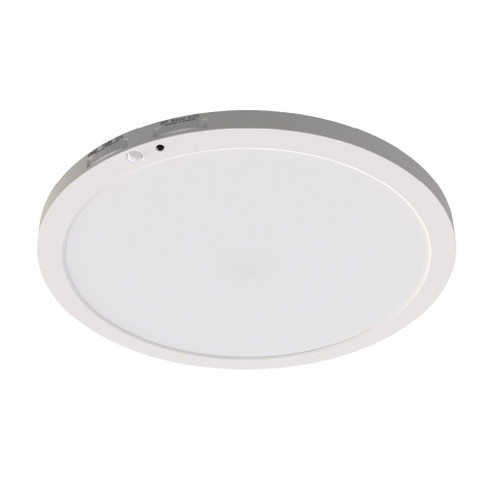

DSK-12-CS-120V-PIR Low-Profile 12in Ceiling Disk | CCT Selectable Color With Integrated PIR Sensor For Hallways
Upgrade corridor and residential ceiling lighting with a low-profile, edge-lit disk that combines architectural styling with energy-saving controls. The Halco 83904 delivers even, low-glare illumination at just 22W, offers selectable color temperatures to match any space, and includes an integrated PIR with daylight sensing to cut runtime and reduce maintenance.
KEY FEATURES:
- Low-Profile Edge-Lit Design: Wide, even light surface reduces hot spots and glare for a clean architectural look.
- Color Selectable: Choose from five tones (2700K–5000K) on installation to match ambient lighting.
- Integrated PIR + Daylight Sensor: Built-in occupancy sensing with daylight cutoff and selectable hold times (30 Sec / 5 Min / 10 Min) lowers energy use.
- Energy Saving: 22W fixture producing 1,650 lumens for efficient ambient illumination.
- Reliable Construction: Plastic frame with steel mounting bracket and PMMA lens for durable, attractive performance.
APPLICATIONS:
- Ideal for residential ceilings and corridor lighting where a low-profile aesthetic is desired.
- Well suited for office building common areas and storage facility aisles needing motion-activated control.
- Perfect for hallways in schools and multi-family housing to reduce runtime and maintenance.
- Installation Tip: Mount near entry points and high-traffic zones to maximize savings from the PIR/daylight combo.
SPECIFICATIONS:
- Wattage: 22W
- Lumens: 1,650
- Size: 12in
- Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
- CRI: 90
- Dimmable: No
- Included Controls: PIR with Daylight Sensor (Hold Times: 30 Sec / 5 Min / 10 Min)
- Voltage: 120V
- Average Life: 50,000 hours
- Power Factor: 0.9
- Housing: Plastic Frame with Steel Bracket
- Lens: PMMA
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
- Location Rating: Damp Location Rated
- Compliance: CA Title 24
- RoHS: Yes
- Warranty: 5-year limited warranty
