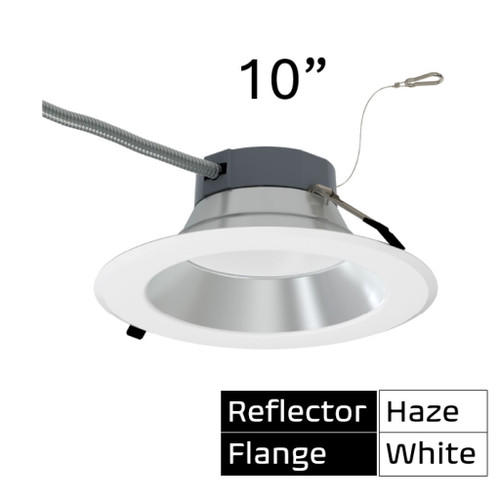

CDL-10-LS-CS-HZWH-DDV 10in Commercial Downlight | CCT Selectable, Universal Triac/0-10V Dimming, Wet Location
Designed for fast commercial retrofits, this 10in Halco downlight lets installers and facility managers choose lumen output and color temperature on-site while providing reliable, wet-location performance. Its dual-dimming driver and can-or-canless mounting reduce install time and future maintenance costs.
KEY FEATURES:
- Selectable Output & Color: Choose between three lumen outputs and five color temperatures (2700K–5000K) to match space requirements without changing fixtures.
- Dual Dimming Compatibility: Integral driver supports Triac/ELV phase-cut and 0-10V for smooth dimming across control systems.
- Wet-Location Ready: IP65 rating protects the fixture in damp or wet environments for expanded installation options.
- Quick Install: Mouse-trap universal steel spring clips and can/canless design speed up retrofits and new installations.
- High Quality Light: 90 CRI and a diffused textured polycarbonate lens deliver comfortable, color-accurate illumination.
APPLICATIONS:
- Ideal for office parks and commercial building ceiling retrofits.
- Well suited for big-box retail and architectural entrances needing wet-location fixtures.
- Good choice for K-12 schools and higher-education facilities seeking flexible lighting options.
- Installation Tip: Use compatible Triac/ELV or 0-10V controls to achieve the best dimming performance and smooth fades.
SPECIFICATIONS:
- Wattage: 24W, 30W or 37W
- Lumens: Selectable 2800, 3500, 4500
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Size: 10in
- Beam Angle: 80° ± 10°
- Lens: Diffused, Textured Polycarbonate
- Housing: Spun Aluminum Reflector with Haze Reflector and White Trim
- Dimmable: Yes (Triac/ELV or 0-10V)
- Average Life: 50,000 hours
- Power Factor: 0.9
- Warranty: 5 years
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, RoHS, Title 24
- Environment: Wet Location (IP65)
- Mounting: Mouse Trap Universal Steel Spring Clips for Can or Canless Installation
