Description

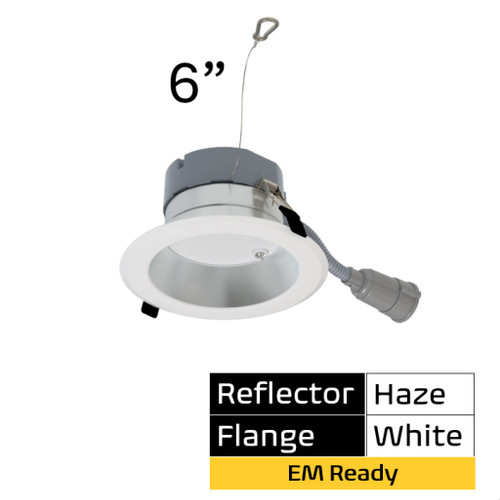

CDLEM-6-LS-CS-HZWH-DDV 6in Commercial Retrofit Downlight | CCT Selectable Lighting For Offices, Retail, Schools And Wet Locations
Designed for fast commercial retrofits, this Halco 89223 6" downlight lets you set color temperature and lumen output before or after install to match space needs while reducing maintenance and energy use. Universal dimming compatibility and a low-profile housing streamline upgrades in offices, retail, and institutional settings.
KEY FEATURES:
- CCT & Lumen Flexibility: Five selectable color temperatures (2700K–5000K) and three lumen outputs for tailored ambiance and task lighting.
- Universal Dimming: Dual dimming modes (Triac/ELV and 0-10V) ensure compatibility with most existing control systems.
- Wet-Location Ready: IP65 rating allows safe installation in damp or wet environments.
- Optional Emergency Ready: Quick-connect emergency battery backup ready design (battery sold separately; product 89226 referenced).
- Tool-Free Installation: Mouse-trap steel spring clips and quick-connect cable simplify can or canless installs.
APPLICATIONS:
- Ideal for office parks and commercial buildings seeking flexible, low-maintenance downlighting.
- Well suited for retail environments and big-box stores that need consistent, high-CRI illumination.
- Great for K-12 schools, colleges, and institutional spaces requiring durable, wet-location rated fixtures.
- Installation Tip: Choose color temperature and lumen output onsite to match existing fixtures and minimize returns.
SPECIFICATIONS:
- Wattage: 11W, 18W or 22W
- Lumens: Selectable 1000, 1800 or 2500
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K or 5000K
- CRI: 90
- Average Life: 50,000
- Voltage: 120-277V
- Dimmable: Yes (Triac/ELV or 0-10V)
- Beam Angle: 80 Degrees +/- 10 Deg
- Size/Shape: 6in Round
- Finish/Trim: Haze Reflector with White Trim
- Mount: Mouse Trap Universal Steel Spring Clips (Can or Canless Install)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, RoHS, Title 24
- Environment: Wet Location (IP65)
- Power Factor: 0.9
- Operating Temp: -20C to 40C (-4F to 104F)
Downloads
Disclaimers
*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
