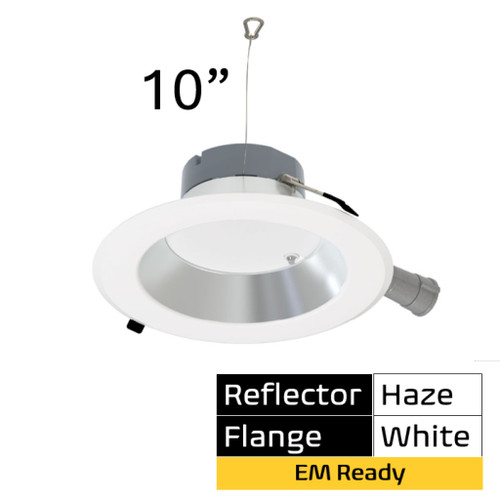

CDLEM-10-LS-CS-HZWH-DDV 10in Commercial Recessed Downlight | Cool White 4000K Option For Offices, Retail, And Schools
Engineered for fast commercial retrofits, the Halco CDLEM-10 delivers selectable color temperatures and lumen outputs to match diverse spaces while reducing maintenance and energy costs. Its low-profile design and universal mounting make upgrades in offices, retail, and education spaces quick and reliable.
KEY FEATURES:
- Selectable Color & Output: Five-position CCT selection (2700K, 3000K, 3500K, 4000K, 5000K) and three lumen settings for tailored lighting scenes.
- Flexible Dimming: Dual dimming compatibility with TRIAC/ELV (120V) and 0-10V for smooth control across systems.
- Wet Location Rated: IP65 construction supports damp and wet environments for perimeter and exterior soffit installs.
- Emergency Ready: Quick-connect emergency battery backup ready (battery sold separately—see accessory SKU 89226) with integrated test button and charge indicator.
- High Quality Light: 90 CRI and wide beam distribution for accurate color and comfortable illumination.
- Rugged Installation: Mouse-trap steel spring clips and can or canless mounting for fast, secure installs.
APPLICATIONS:
- Ideal for office parks and commercial building ceiling retrofits.
- Well suited for retail environments and big-box store aisles.
- Perfect for schools and educational facilities requiring high-CRI, controllable lighting.
- Installation Tip: Use the lumen and CCT switches to dial-in uniform appearance across contiguous ceiling zones before finalizing placement.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Model / Product Code: CDLEM-10-LS-CS-HZWH-DDV
- Wattage: 25W, 35W, or 38W
- Lumens: Selectable 2800 / 3500 / 4500
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Dimmable: Yes (Triac/ELV or 0-10V)
- Size / Shape: 10in Round
- Beam Angle: 80° ±10°
- Average Life: 50,000 hours
- Power Factor: 0.90
- Operating Temp: -20°C to 40°C (-4°F to 104°F)
- Mount Included: Mouse Trap Universal Steel Spring Clips and cut-out template
- Finish / Trim: Haze Reflector with White Flange/Trim
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star Certified, Title 24 compliant, RoHS, FCC
- Location Rating: Wet Location / IP65
- Packaging: Sold in multiples of 1
