Description

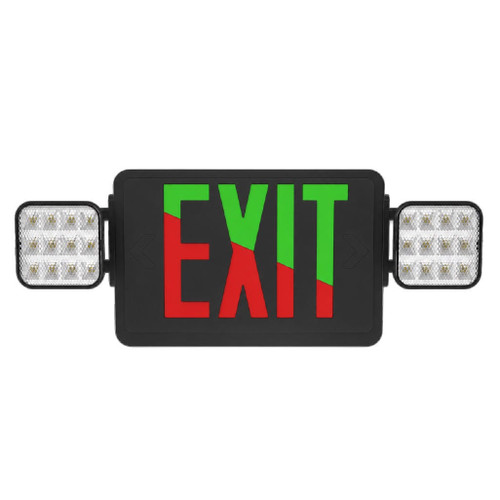

EMG-EXC-SQ-BK-SD Combo Exit Emergency Fixture | Field-Selectable Red Or Green Faces, Self-Diagnostics, 90-Min Ni-MH Backup
Designed for reliable egress illumination in corridors, stairwells, and other life-safety areas, this combo exit/emergency unit combines field-configurable exit signage with adjustable LED emergency heads to meet code requirements while simplifying installation and maintenance.
KEY FEATURES:
- Flexible Mounting: Includes canopy and mounting plate for ceiling or wall installation to J-Box.
- Field-Selectable Faces: Switchable Red or Green stencil face with optional chevrons for single or double-face configurations.
- Adjustable Emergency Lamps: Two LED heads with 360° rotation and 180° tilt delivering 200 lm for effective corridor illumination.
- Reliable Backup: 90-minute Ni-MH battery backup with 24-hour recharge and on-board battery charge indicator.
- Self-Test Diagnostics: Integrated self-test and self-diagnostics reduce maintenance and ensure code compliance.
- Durable Construction: Black injection-molded thermoplastic housing with polycarbonate lens.
APPLICATIONS:
- Ideal for hallways and corridors in commercial and multi-residential buildings.
- Perfect for stairwells and emergency egress routes where reliable backup lighting is required.
- Suitable for offices, retail, and light industrial spaces needing combined exit signage and emergency illumination.
- Installation Tip: Use the included canopy for clean ceiling mounts or attach directly to a J-Box for wall installs.
SPECIFICATIONS:
- Wattage: 3.5W
- Lumens: 200 lm
- Color Selectable: Red or Green
- Dimmable: No
- Voltage: 120-277V
- Average Life: 50,000 hrs
- Warranty: 3 years
- Housing Material: Injection-molded thermoplastic ABS
- Lens: Polycarbonate
- Finish: Black
- Mount Included: Yes
- Sold In Multiples Of: 1
- Master Carton Size: 6
- Environment: Damp or Dry
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924 Damp Location Listed; NFPA 101; NFPA 70; CEC T20
- RoHS: Yes
