Description

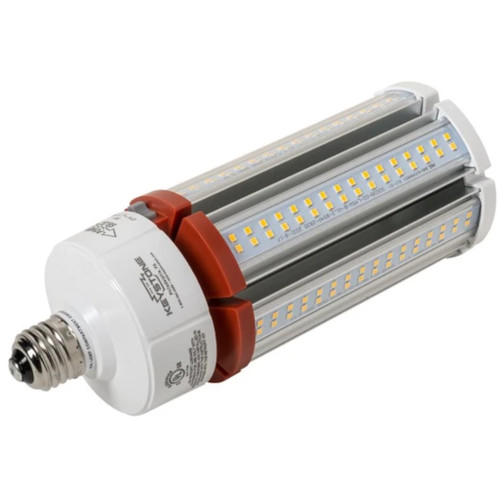

175W Metal Halide Replacement LED Retrofit Bulb | 45W/36W/27W | 120-277V | E26 Base | Soft White
Keystone KT-LED45PSHID-E26-830-D /G4 is a power selectable HID replacement LED lamp designed to replace a conventional 175W metal halide lamp in compatible fixtures. This 3000K soft white direct drive lamp uses an E26 medium base, operates on 120-277V, delivers up to 6075 lumens, and includes an integral driver with 4kV surge protection after the existing ballast, capacitor, and ignitor are removed.
Product Specifications
- Brand: Keystone
- Model: KT-LED45PSHID-E26-830-D /G4
- Product Type: HID replacement LED lamp
- Operation Type: Direct drive ballast bypass
- Metal Halide Equivalent: 175W
- Base Type: E26 medium
- Selectable Wattage: 45W, 36W, or 27W
- Input Voltage: 120-277V
- Color Temperature: 3000K
- Light Appearance: Soft White
- Lumens: 6075 lm at 45W, 4860 lm at 36W, 3645 lm at 27W
- Efficacy: 135 lm/W
- CRI: >80
- Power Factor: >=0.90
- Dimmable: No, not for use with standard dimmers
- Driver Type: Integral driver
- Surge Protection: 4kV
- Rated Life: 50,000+ hours
- Operating Temperature: -30 C to 45 C
- Location Rating: IP64
- Listing: UL listed
- Fixture Rating: Suitable for use in fully enclosed fixtures
- Minimum Lamp Compartment Dimensions: 8.0 x 8.0 x 10.0 inches
- Body Length: 9.13 inches
- Illuminated Length: 5.55 inches
- Diameter: 3.35 inches
- Pack Quantity: 16
- UPC: 843654138275
- Easy Code: YTX-52
- Warranty: 5 years
Benefits
- Replaces conventional 175W metal halide lamps with a more efficient LED solution.
- Power selectable design lets contractors choose 45W, 36W, or 27W during installation.
- Direct drive operation eliminates the need for the existing ballast, capacitor, and ignitor.
- E26 medium base supports compatible HID retrofit fixtures using a medium socket.
- Integral driver with 4kV surge protection helps simplify installation and improve durability.
- Instant startup provides full light output without metal halide warm-up time.
- IP64 rating and integrated heat sink design support use in demanding retrofit applications.
- Mercury-free LED construction provides an environmentally friendly replacement option.
Applications
- 175W metal halide replacement projects
- Commercial HID fixture retrofits
- Post top fixtures
- Area lighting fixtures
- Wall packs and exterior fixtures with proper lamp compartment size
- Warehouse and maintenance lighting
- Facility lighting upgrades
- General E26 HID replacement applications
