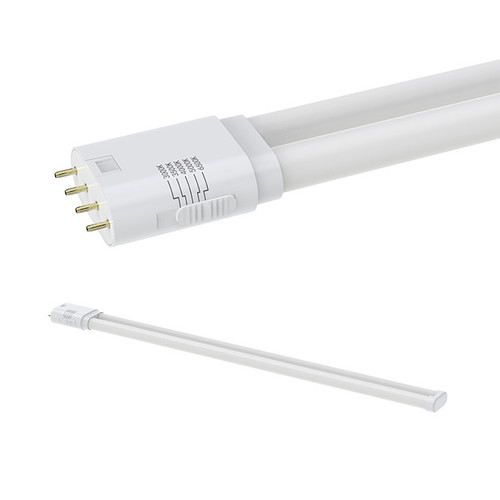

LED17PLL/220L/2G11/8C5/AB CCT Selectable PL-L Retrofit Lamp | 160° Wide Beam For Recessed Cans, Sconces, And Ceiling Fixtures
Engineered for fast, low‑cost retrofits in recessed cans, sconces, and ceiling fixtures, this NaturaLED PL‑L lamp replaces legacy 4‑pin fluorescent tubes with bright, selectable color temperatures and flexible ballast installation options to cut maintenance and energy use.
KEY FEATURES:
- Field‑Adjustable CCT: CCT5 technology allows selection of 3000K / 3500K / 4000K / 5000K / 6500K on‑site for tailored ambiance.
- Hybrid Type A+B: Ballast Compatible (Type A) or Line Voltage Bypass (Type B) installation for maximum retrofit flexibility.
- High Output: Produces 2,200 lumens at 17W for bright, efficient illumination in commercial and residential settings.
- Wide Distribution: 160° beam spread for even lighting across open ceiling planes and wall fixtures.
- Durable & Reliable: UL/cUL Listed, Damp Location Rated, DLC Standard, 50,000‑hour rated life with a 5‑year warranty.
APPLICATIONS:
- Ideal for recessed cans and ceiling fixtures in offices, retail, and multi‑family housing.
- Well suited for wall sconces and hospitality corridors requiring consistent color control.
- Good choice for retrofit projects replacing 2G11 PL‑L fluorescent tubes in commercial ceilings.
- Usage Tip: Use the field CCT selector to match adjacent lighting zones for seamless color continuity.
SPECIFICATIONS:
- Wattage: 17W
- Lumens: 2,200 lm
- Color Temperature: 3000K / 3500K / 4000K / 5000K / 6500K (CCT Selectable)
- CRI: 80
- Base Type: 2G11
- Beam Angle: 160°
- Voltage: 120-277V
- Dimmable: Yes
- Type: AB (Ballast Compatible & Bypass)
- Orientation: Horizontal
- IP Rating: IP20
- Lifespan: 50,000 hours
- Warranty: 5 year
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: UL/cUL Listed
- DLC: Standard
- Location Rating: Suitable For Damp Locations
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
