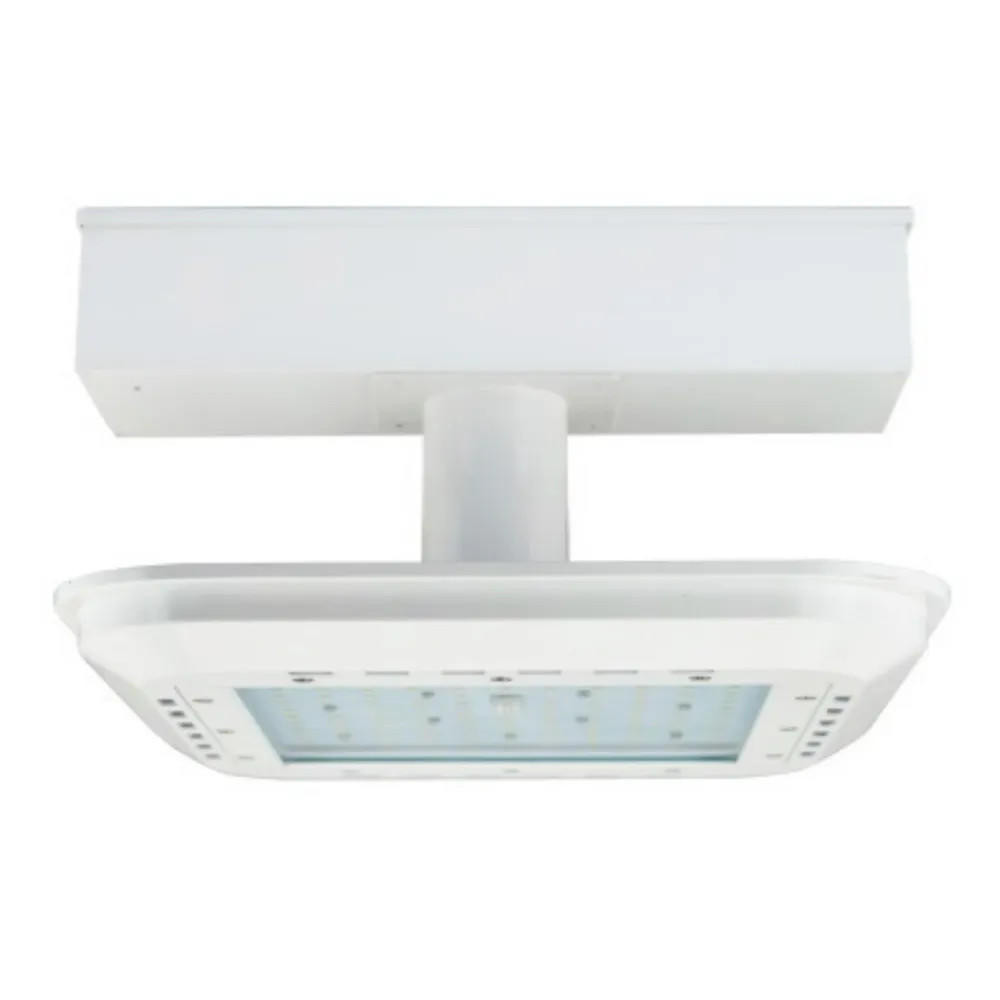

LED-FXGSC45/50K/WH Durable 45W Canopy Luminaire For Gas Station Lighting | Daylight (5000 K) | IP65 Rated, 0-10V Dimmable
Engineered to reduce maintenance and energy costs for fueling stations and outdoor canopies, this LED-FXGSC45/50K/WH canopy luminaire delivers bright, uniform light while minimizing service visits and electrical consumption.
KEY FEATURES:
- Weatherproof Design: IP65-rated housing protects against moisture and debris for reliable canopy performance.
- High Efficiency: 45W operation producing 5,513 lumens at 107 LPW for strong illumination with lower energy use.
- Flexible Dimming: Integrated 0-10V dimming enables smooth light level control and energy savings.
- Robust Electrical Performance: Wide 100~277V input, >0.95 power factor, and THD <20% ensure stable operation on common distributions.
- Long-Life & Warranty: 50,000-hour rated life backed by a 5-year limited warranty to reduce replacement cycles.
APPLICATIONS:
- Ideal for gas station canopy lighting and fuel pump islands.
- Suitable for parking structure canopies and drive-thru canopies.
- Great for commercial outdoor canopy and walkway illumination.
- Tip: Pair with the suggested motion sensor accessory to maximize energy savings during low-traffic periods.
SPECIFICATIONS:
- Wattage: 45W
- Tested Wattage: 46.05W
- Lumens: 5,513
- Efficacy: 107 LPW
- Color Temperature: 5000K
- CRI: >80
- Beam Angle: 120°
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.38 A
- Power Factor: >0.95
- Dimmable: 0-10V
- THD: <20%
- Rated Life: 50,000 hours
- Warranty: 5 years
- IP Rating: IP65
- Weight: 1.38 lbs
- Height: 12.63 in
- Width: 12.63 in
- Operating Temperature: -40°F~140°F
- Storage Temperature: -40°F~140°F
- Suggested Accessory: Motion Sensor
CERTIFICATIONS & ADDITIONAL NOTES:
- Standards: LM79, LM80, IES File
- Qualifications: UL/ETL, Energy Star, DLC, CEC
- Other Marks: FDA, NEMA, JA8, FCC, RoHS
