Description

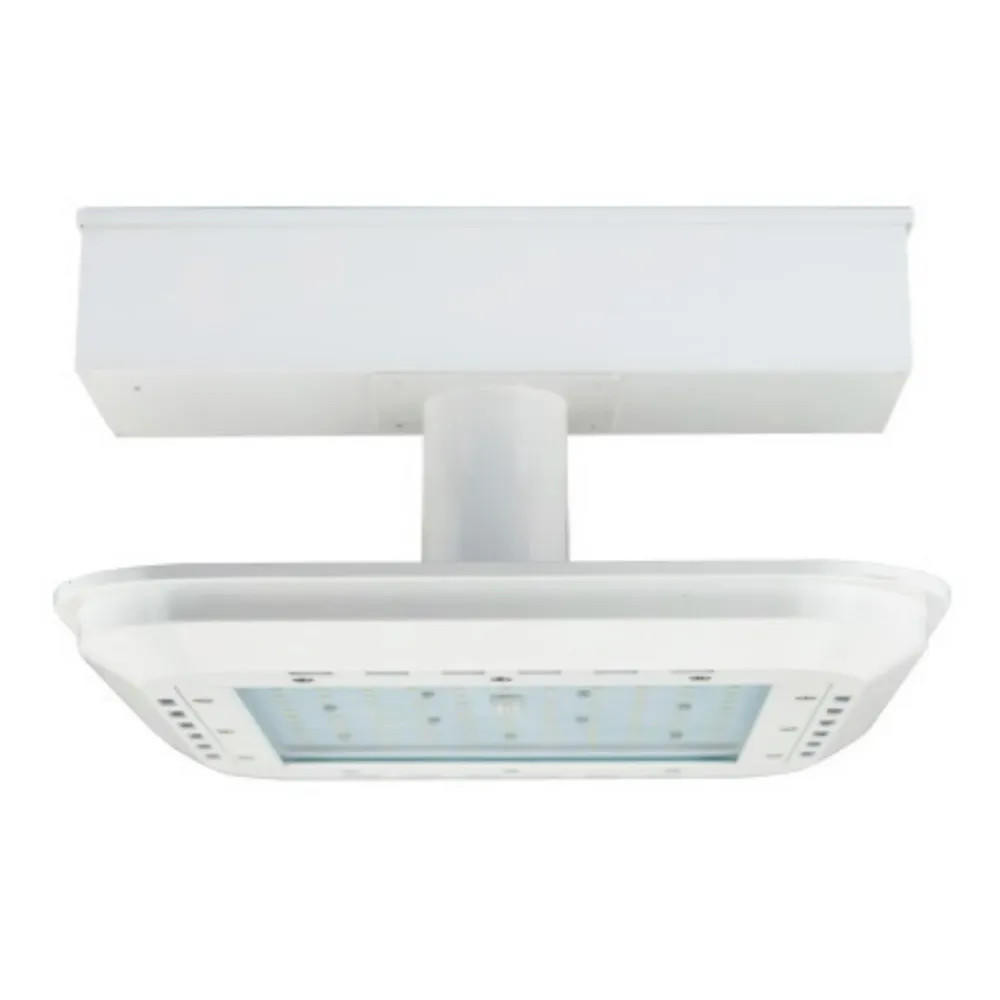

LED-FXGSC75/50K/WH High-Performance Gas Station Canopy Fixture | Daylight (5000 K) | IP65 Wet-Rated Energy-Efficient
Designed for canopy retrofit and new installations, this LED-FXGSC75/50K/WH delivers high-output, weatherproof illumination that reduces maintenance and energy costs while providing stable, glare-controlled light for fueling stations and outdoor service areas.
KEY FEATURES:
- Mounting Flexibility: Recessed, suspended, or junction box installations simplify retrofits.
- Weatherproof: IP65 wet-location rating protects the fixture in canopy and outdoor environments.
- High Output: Produces 8,997 lumens with 109 lm/W efficacy for bright, efficient illumination.
- Dimmable Control: Compatible with 0-10V dimming for customizable light levels and energy savings.
- Wide Voltage Range: Operates on 100~277V for versatile electrical compatibility.
APPLICATIONS:
- Fueling station canopies and outdoor service forecourts.
- Convenience store overhangs and retail pump islands.
- Automotive service bays, car wash canopies, and repair shop forecourts.
- Tip: Use 0-10V dimming schedules to reduce nighttime energy use and minimize glare.
SPECIFICATIONS:
- Tested Wattage: 120W
- Lumens: 8,997
- Efficacy: 109 lm/W
- CRI: >80
- Color Temperature: 5000K
- Beam Angle: 109°
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.63 A
- Power Factor: >0.95
- Dimmable: 0-10V
- IP Rating: IP65
- Rated Life: 50,000 hours
- Warranty: 5 years
- Mounting: Recessed, Suspended, Junction Box
- Housing Color: White
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC
- Compliance: JA8, FCC, RoHS; LM79 and LM80 test data and IES file available
