Description

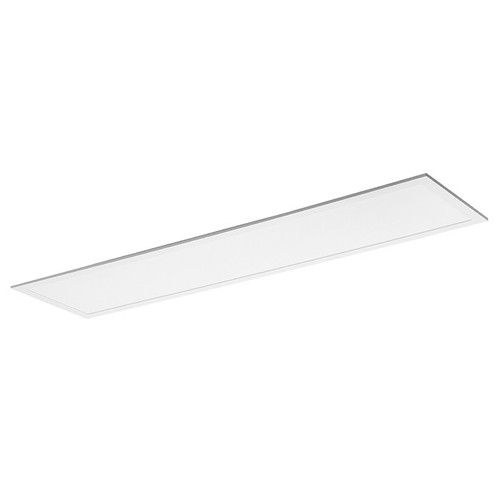

FXPNL38SW/1x4/8CCT3 CCT Selectable 1'x4' Back-Lit Panel | Dimmable 0-10V For Offices, Schools, And Meeting Rooms
Engineered for straightforward retrofits and new installs in commercial interiors, the NaturaLED 7525 1'x4' back-lit flat panel provides uniform, edge-to-edge illumination while reducing energy and maintenance needs. Its slim profile and selectable color temperatures make it an adaptable solution for offices, classrooms, and meeting rooms.
KEY FEATURES:
- CCT Selectable: Field-selectable 3500K, 4000K, or 5000K for tailored lighting in different spaces.
- Simple Dimming: 0-10V dimmable driver enables smooth light level adjustments and energy savings.
- Uniform Lighting: Back-lit design offers consistent, edge-to-edge illumination with minimal glare.
- Robust Performance: Rated for 50,000 hours with a 5-year limited warranty for reduced lifecycle costs.
- Wide Voltage Range: 120-277V operation for flexible electrical integration.
APPLICATIONS:
- Ideal for office open areas and private workspaces aiming for comfortable, uniform light.
- Perfect for classrooms and training rooms where color consistency improves focus.
- Suitable for conference and meeting rooms requiring controllable lighting levels.
- Installation Tip: Use the accessory surface-mount or flange kits for non-T-bar ceilings to preserve the panel's slim aesthetic.
SPECIFICATIONS:
- Wattage: 38W
- Lumens: 4,180
- Color Temperature: CCT Selectable (3500K, 4000K, 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 115°
- Dimensions: 48 × 12 × 1.80 in
- Shape: 1'x4' Back-Lit Flat Panel
- Lifespan: 50,000 hours
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Standard, ETL Listed
- Location Rating: Damp Location
- Surge Protection: 2.5KV
- Operating Temperature: -4°F – 104°F
- Warranty: 5-year limited warranty
