Description

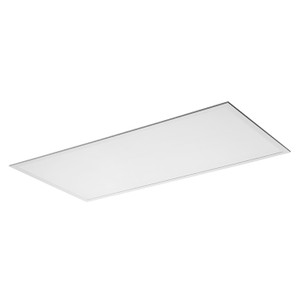

FXPNL46SW/2x4/8CCT3 Back-Lit 2x4 Panel | CCT Selectable Lighting Solution For Offices, Schools, And Retail
Deliver uniform, low‑glare illumination for offices, classrooms, and retail spaces with this low‑profile 2'x4' back‑lit panel. The NaturaLED FXPNL46SW/2x4/8CCT3 combines field‑selectable color temperatures, multi‑watt options, and consistent edge‑to‑edge light distribution to simplify installations and reduce maintenance costs in commercial interiors.
KEY FEATURES:
- CCT Selectable: Field‑selectable 3500K / 4000K / 5000K for accurate tuning to space needs.
- Multi‑Watt Options: User selectable 28W, 39W, or 46W to match desired lumen output and energy budget.
- Uniform Lighting: Back‑lit design provides even edge‑to‑edge illumination with low glare.
- Flexible Controls: 0‑10V dimmable for smooth dimming integration with building controls.
- Robust Performance: 120–277V operation with 2.5kV surge protection and wide operating temperature range.
- Lightweight Install: Slim housing and optional surface/flange mount kits simplify retrofit or new construction installs.
APPLICATIONS:
- Ideal for open office ceilings and recessed T‑bar grids in commercial office buildings.
- Perfect for classrooms, meeting rooms, and healthcare administrative areas requiring consistent task lighting.
- Well suited for retail floor areas and hospitality back‑of‑house spaces seeking energy savings and uniform light.
- Usage Tip: Use the CCT switch to match adjacent fixtures during installation and select lower wattage for open‑plan areas to reduce energy use.
SPECIFICATIONS:
- Wattage: Selectable 28W / 39W / 46W
- Lumens: 3,360 lm / 4,524 lm / 5,280 lm
- Color Temperature: CCT Selectable (3500K, 4000K, 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 115°
- Size: 2' x 4' (4 ft)
- Dimensions: 48.00 × 24.00 × 1.79 in
- Surge Protection: 2.5 kV
- Operating Temperature: -4°F – 104°F
- Lifespan: 50,000 hours
- Additional Output: Includes 12V output for controls and accessories
- Emergency: Emergency drivers available (ordered separately)
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Standard, ETL Listed
- Location Rating: Suitable for Damp Locations
- Warranty: 5 Year limited warranty
