Description

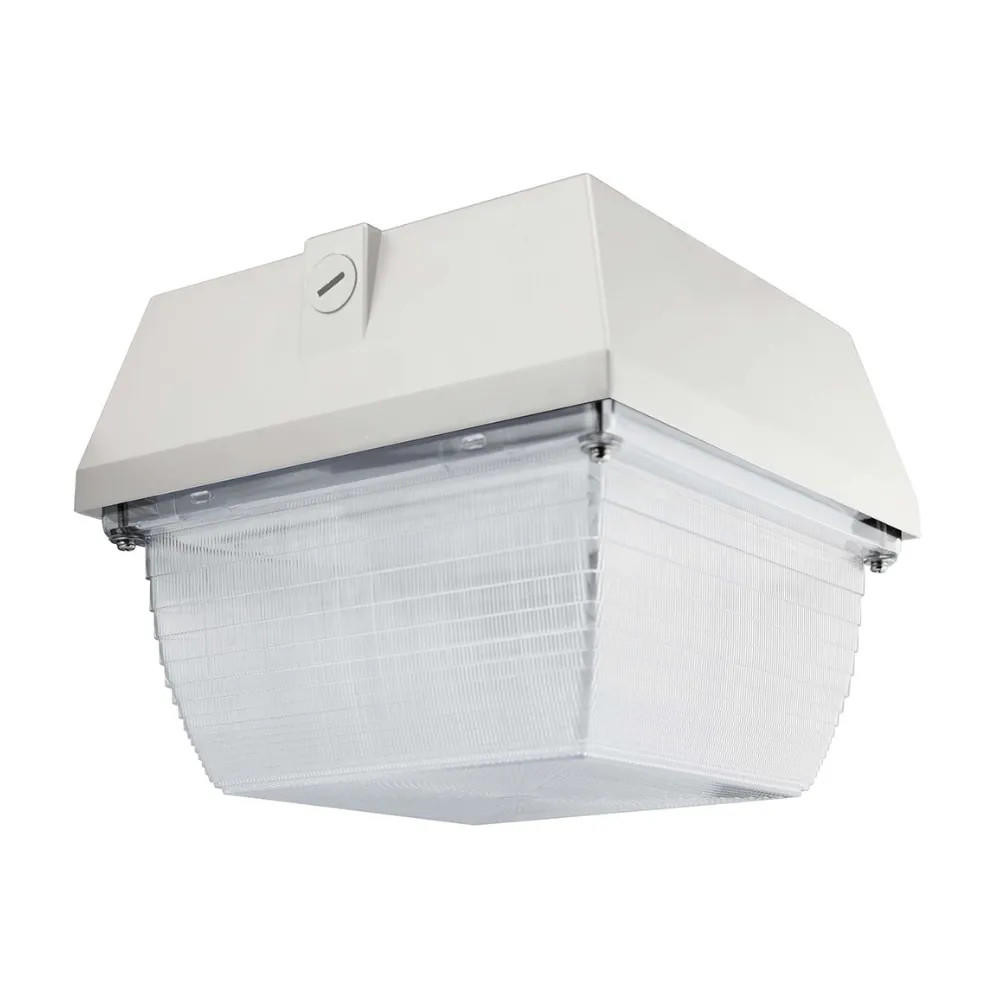

Low-Profile Surface-Mount Canopy For Parking Garages And Walkways | Daylight (5000 K) | IP65 Wet-Location Housing
Engineered for quick retrofits and low-maintenance operation, this surface-mount canopy delivers uniform Daylight illumination while reducing service calls and energy costs in commercial and industrial settings.
KEY FEATURES:
- Wet-Location Ready: IP65-rated design protects against dust and moisture for reliable outdoor canopy use.
- Wide Uniform Light: 140° beam angle provides even illumination across parking and walkway areas to improve safety.
- Universal Voltage: 120-277V compatibility simplifies installation across varied electrical systems.
- Durable Construction: Die-cast aluminum housing with shatter-resistant polycarbonate lens reduces maintenance and replacement downtime.
- Emergency Ready: Optional emergency driver available for code-compliant egress lighting.
APPLICATIONS:
- Parking garage and canopy lighting for commercial properties.
- Covered walkways and entryway illumination at retail or institutional sites.
- Security and area lighting for loading docks and service yards.
- Usage Tip: Mount 15-30 ft high for optimal performance and uniform coverage.
SPECIFICATIONS:
- Wattage: 40W
- Lumens: 3,429
- Color Temperature: 5000K (Daylight)
- CRI: 70
- Voltage: 120-277V
- Power Factor: >0.9
- Surge Protection: 2KV
- Beam Angle: 140° (CCM)
- Rated Life: 50,000 Hours
- IP Rating: IP65
- Operating Temperature: -22°F - 131°F
- Lens: Shatter-resistant Polycarbonate
- Housing: Die-Cast Aluminum
- Color: White
- Dimensions: 9" (228mm)
- Weight: 4.70-lbs
- Package: Case Qty 1 pc
- Warranty: 5 Year
