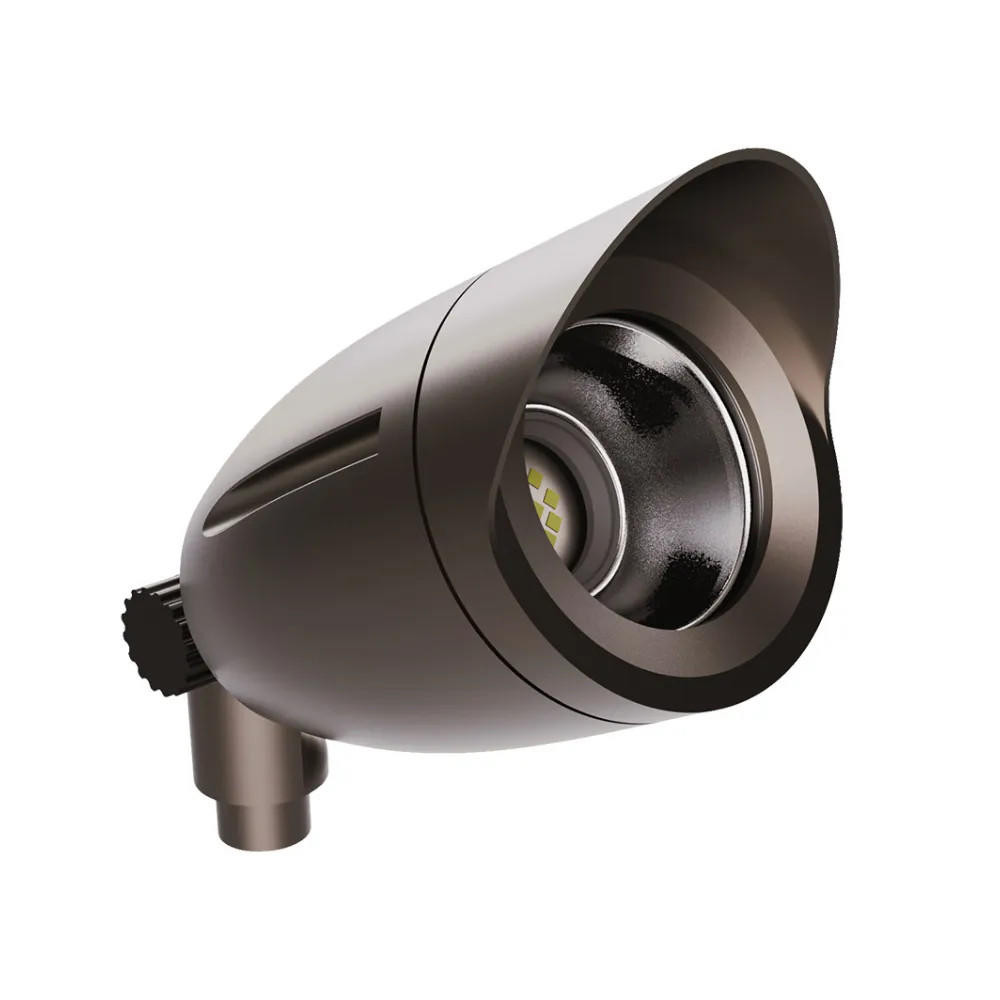

LED-FXBFS10/40/850/BZ-KNC High-Performance 10W Single-Head Outdoor Bullet Floodlight For Security | Daylight | Knuckle Mount IP65
Built for reliable outdoor security lighting, the LED-FXBFS10/40/850/BZ-KNC combines a compact knuckle-mount form with weatherproof protection to reduce maintenance and deliver consistent Daylight illumination for perimeter and area lighting applications.
KEY FEATURES:
- Compact, Durable Design: Bronze knuckle mount (1/2" NPT) provides easy aiming and secure installation for targeted illumination.
- Weatherproof Performance: IP65-rated housing protects against dust and water for dependable outdoor use.
- Energy-Efficient Output: 10W tested at 10.38W with 900 lumens for effective illumination at low power draw.
- Wide Voltage Range: 120~277V input supports versatile installations across commercial sites.
- Long Service Life: Rated life of 50,000 hours and backed by a 5-year warranty for reduced replacement frequency.
APPLICATIONS:
- Ideal for building perimeters and exterior security lighting.
- Suitable for parking areas, walkways, and driveways requiring focused illumination.
- Good for landscape accenting and sign/entryway lighting where targeted beams are needed.
- Usage Tip: Use the 1/2" NPT knuckle mount to precisely aim the fixture for optimal coverage and minimal glare.
SPECIFICATIONS:
- Item Code: LED-FXBFS10/40/850/BZ-KNC
- Stock Code: 9292
- Category: LED Single Head Bullet Flood
- Wattage: 10W
- Tested Wattage: 10.38W
- Lumens: 900
- Efficacy: 112 LPW
- CRI: >80
- Color Temperature: 5000K
- Beam Angle: 40°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.1 A
- Power Factor: >0.9
- Surge Protect Level: 2KV
- Dimmable: Non-Dim
- Warranty: 5 years
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Housing Color: Bronze
- Mounting: Knuckle Mount - 1/2" NPT
- Weight: 1.391 lbs
- Dimensions (H x L x W): 3.81 in x 7.36 in x 3.38 in
- Operating Temperature: -22°F~122°F
- Storage Temperature: -40°F~158°F
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC
- Test Reports: LM79, LM80, IES File
- Other: FDA, NEMA markings present on spec sheet
