Description

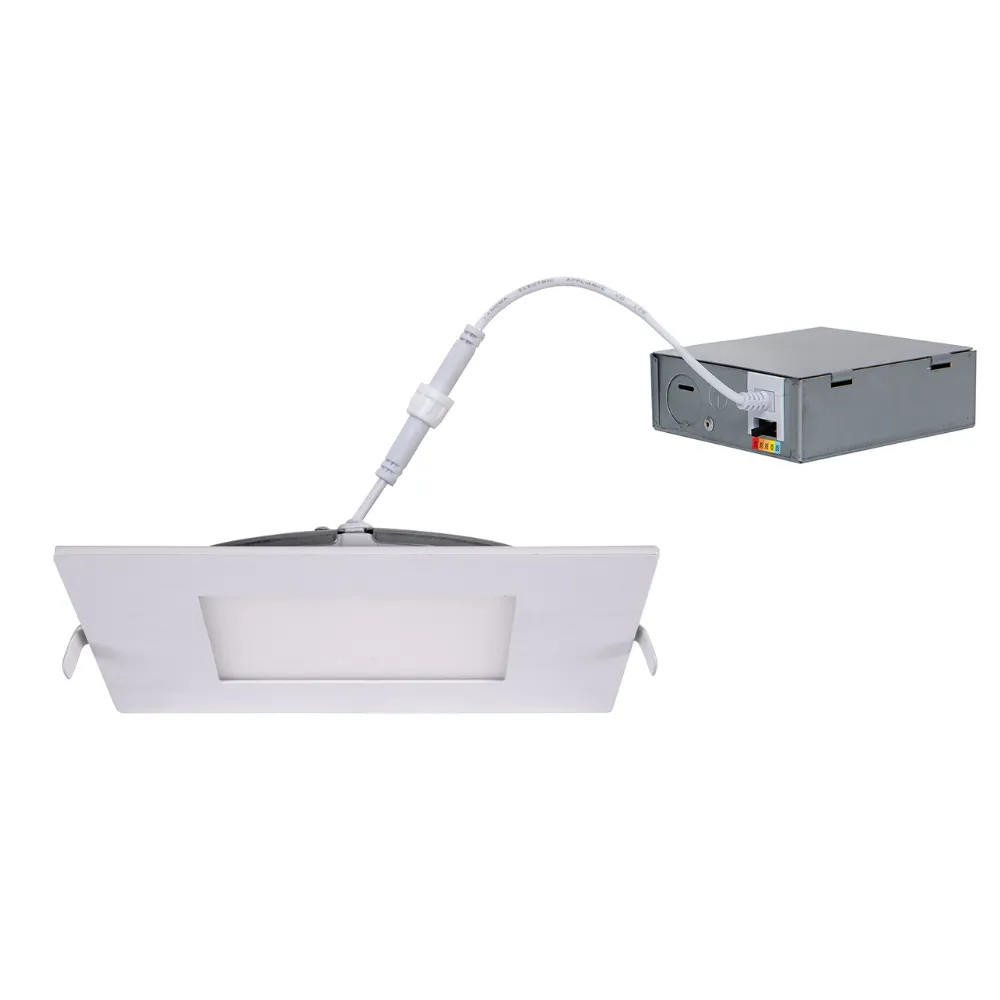

LED4DLS-65L9CCT5 Low-Profile Square Recessed Disk Light | CCT Selectable | Wet Location | Remodel Ready
Upgrade tight-ceiling and wet-location spaces with a low-profile, energy-saving LED disk that simplifies remodels and new installs. The PR 9362 delivers selectable CCT options, efficient 10W operation, and long-life performance to reduce maintenance and energy costs while providing consistent, high-quality light.
KEY FEATURES:
- Compact Retrofit: Low-profile 1.08" housing fits shallow ceilings for fast remodel and new-construction installs.
- CCT Selectable: Five selectable color temperatures (2700K–5000K) to tune ambiance without changing fixtures.
- Wet-Location Rated: Designed for damp and wet environments, ideal for bathrooms and covered outdoor ceilings.
- Long Life & Warranty: Rated 50,000 hours with a 5-year warranty to minimize maintenance and replacement cycles.
- Efficient Light Output: High efficacy design (~65 LPW) with lumen options for varied applications.
APPLICATIONS:
- Ideal for residential and commercial bathrooms and vanity areas.
- Perfect for kitchens, covered porches, and wet-location soffits.
- Well suited for corridors, closets, and general-purpose ceiling illumination.
- Usage Tip: Use with incandescent-compatible dimmers for smooth dimming performance.
SPECIFICATIONS:
- Wattage: 10W
- Tested Wattage: 10W
- Lumens: 650 / 680 / 710 / 715 / 700 (by CCT)
- Efficacy: 65 lm/W
- Color Temperature: CCT Selectable (2700 / 3000 / 3500 / 4000 / 5000)
- CRI: 90
- Beam Angle: 110°
- Input Voltage: 120V
- Frequency: 60 Hz
- Input Current: 0.1 A
- Surge Protect Level: DM=1KV, CM=2KV
- Power Factor: >0.9
- THD: ≤20%
- Operating Temperature: -4 ~ 113 °F
- Rated Life: 50,000 hours
- Warranty: 5 years
- Dimensions (W x H x D): 4.72" x 1.08" x 4.72" (120mm x 27.5mm x 120mm)
- Dimmable: Incandescent Dimming
- Location Rating: Wet Location
- Certifications & Files: cETLus, LM79, LM80, IES File, JA8, DLC, Energy Star, FCC, RoHS
