Description

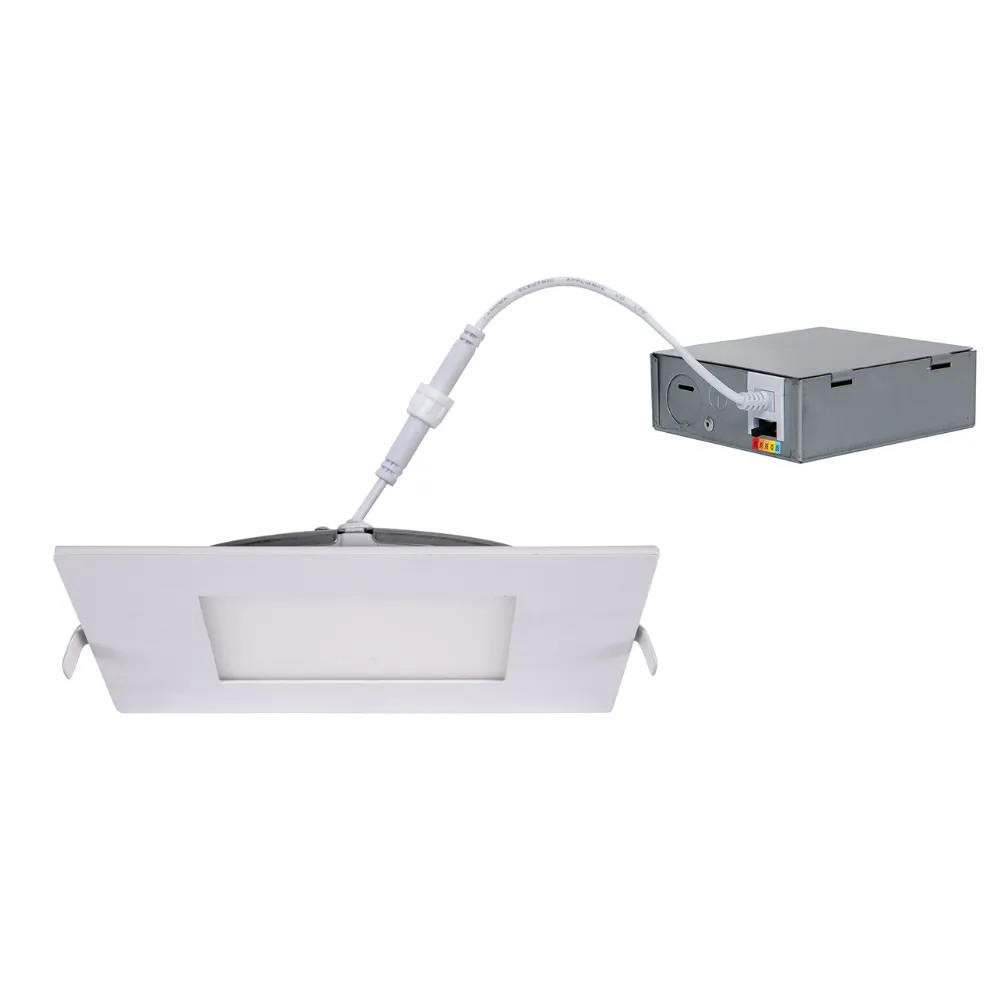

LED6DLS-90L9CCT5 Low-Profile 6-Inch Recessed Ceiling Disk Light | CCT Selectable | Energy-Efficient Retrofit For Wet Locations
Designed for fast recessed ceiling retrofits, the LED6DLS-90L9CCT5 (PR-9364) delivers selectable color temperatures and dependable wet-location performance while reducing energy use and maintenance intervals.
KEY FEATURES:
- Fast Retrofit: Low-profile 6-inch design installs into standard recessed housings for quick upgrades.
- CCT Selectable: Five selectable color temperatures from Warm White to Daylight for tailored lighting scenes.
- Energy Efficient: High efficacy design (75 LPW) provides bright output at low wattage.
- Wet-Location Ready: Rated for wet locations, suitable for bathrooms and covered exterior soffits.
- Long Life & Warranty: 50,000 hour rated life with a 5-year limited warranty reduces replacement cycles.
APPLICATIONS:
- Ideal for residential kitchens, corridors, and retrofit ceiling projects.
- Well-suited for retail and commercial ceiling grids seeking low-maintenance LED solutions.
- Appropriate for bathrooms, covered outdoor soffits, and other wet-location environments.
- Usage Tip: Use compatible incandescent-type dimmers listed on the dimmer list for smooth dimming performance.
SPECIFICATIONS:
- Wattage: 12W
- Tested Wattage: 12W
- Lumens: 900 / 940 / 970 / 990 / 960
- Efficacy: 75 LPW
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90
- Input Voltage: 120V
- Input Current: 0.12A
- Power Factor: >0.9
- THD: ≤20%
- Surge Protect Level: DM=1KV, CM=2KV
- Dimmable: Incandescent Dimming
- Beam Angle: 110°
- Rated Life: 50,000 hours
- Warranty: 5 years
- Mounting: Recessed
- Dimensions: Diameter 6.85" (174mm) x Height 1.08" (27.5mm)
- Location Rating: Wet Location
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety & Compliance: UL/ETL, cETLus indicated on spec sheet.
- Performance Files: LM79 and LM80 testing available; IES files provided.
- Regulatory: JA8 listing, Energy Star and DLC referenced on the spec.
