Description

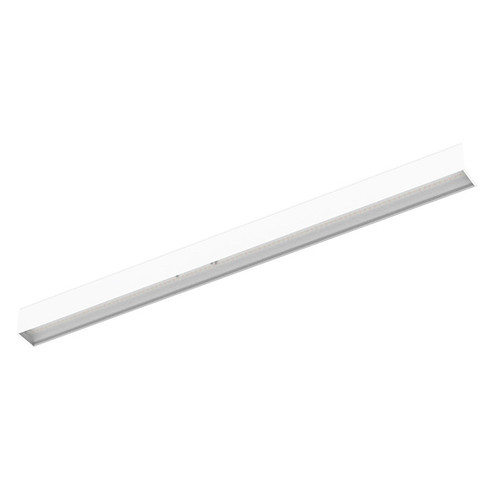

FXLAL60SW/48FR/8CCT5/WH/347 Architectural 4ft Linear Fixture | 5-CCT Field-Adjustable Lighting For Offices, Retail, And Conference Areas
Designed for modern commercial interiors, the NaturaLED 9549 linear architectural fixture delivers flexible, high‑quality illumination with field‑selectable wattage and color temperature to reduce SKUs and simplify installation for offices, retail, and conference spaces.
KEY FEATURES:
- Field‑Selectable Performance: Choose from five wattage settings (30/35/40/50/60W) and five CCT options for one fixture to fit multiple spaces.
- Versatile White Tones: 5‑CCT (3000/3500/4000/5000/6500K) for consistent color matching across rooms.
- Wide Voltage Range: 120–347V operation simplifies installation in diverse commercial electrical systems.
- Controls Ready: 0–10V dimming compatibility for smooth light level control and energy savings.
- Durable & Reliable: ETL/cETL listed, DLC Standard, IP20-rated with 4kV surge protection and a 5‑year limited warranty.
- High Efficacy: Efficient light output optimized across CCTs for low operating cost.
- Optional Accessories: Uplight bar modules and linkable connectors (L/T/X) for continuous runs and custom layouts.
APPLICATIONS:
- Ideal for open offices and private offices seeking flexible, low‑maintenance lighting.
- Well suited for retail environments and reception areas where color consistency matters.
- Perfect for conference rooms and education facilities that require adjustable light output.
- Installation Tip: Use linkable connectors or uplight modules to create continuous, uniform runs and simplify wiring during install.
SPECIFICATIONS:
- Wattage: Selectable — 30W, 35W, 40W, 50W, 60W
- Lumens: 30W = 3,900 lm; 35W = 4,550 lm; 40W = 5,200 lm; 50W = 6,500 lm; 60W = 7,800 lm
- Efficacy: 126–137 lm/W (varies by CCT)
- Color Temperature: 5CCT Field‑Selectable (3000K / 3500K / 4000K / 5000K / 6500K)
- CRI: >80
- Voltage: 120–347V
- Dimmable: 0–10V
- Surge Protection: 4 kV
- Beam Angle: 110° Flood
- Length: 4 ft
- Dimensions: 47.24 × 2.55 × 3.14 in
- Weight: 3.96 lbs
- Rated Life: 50,000 hours
- IP Rating: IP20
- Case Quantity: 2 pcs
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: ETL / cETL Listed
- DLC: DLC Standard Qualified
- Operating Temp: -4°F to 122°F
- Warranty: 5‑Year Limited Warranty
- Accessories: Uplight bar modules and linkable connectors available separately; emergency driver sold separately.
