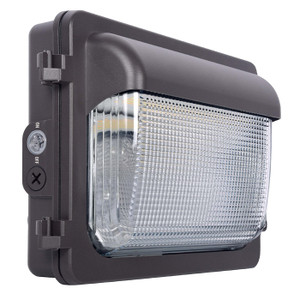

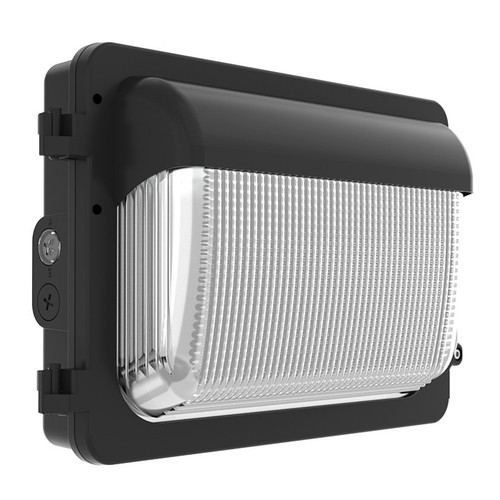

FXTWX60SW/8CCT3/BK-PHO Selectable Outdoor Wall Pack With Color Temp Selection And Integrated Photocell For Perimeter Lighting
Designed to simplify perimeter and security lighting upgrades, the NaturaLED TWX 60SW provides field-selectable wattages and color temperatures to match site requirements while reducing energy use and maintenance. The integrated photocell automates dusk-to-dawn operation for dependable outdoor illumination.
KEY FEATURES:
- Wattage & Color Selectable: Field-selectable 25W / 40W / 60W and 3000K / 4000K / 5000K options let you tailor output and color on site.
- Integrated Photocell: Built-in photocell provides automatic dusk-to-dawn switching for reliable perimeter control.
- Durable Construction: Die-cast aluminum housing with borosilicate glass lens and corrosion-resistant powder coat finish for long outdoor life.
- Robust Outdoor Performance: IP65 rating, IK10 impact resistance, and 4kV surge protection for demanding exterior environments.
- Energy Efficient & Low Maintenance: 50,000 hour rated life and DLC Premium qualification reduce energy and upkeep costs.
APPLICATIONS:
- Ideal for building exteriors, perimeter security, and entryway illumination.
- Well suited for parking areas, pathways, and loading zones requiring dependable dusk-to-dawn control.
- Excellent for commercial and industrial sites needing flexible light output and color tuning.
- Tip: Use the integrated photocell for automatic scheduling and pair with optional sensors for occupancy-based dimming.
SPECIFICATIONS:
- Wattage: Selectable 25W / 40W / 60W
- Lumens: 3,729 lm (25W), 5,000 lm (40W), 7,538 lm (60W)
- Color Temperature: 3CCT (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- IP Rating: IP65
- Lens: Borosilicate Glass
- Material: Die-Cast Aluminum
- Surge Protection: 4KV
- Operating Temperature: -40°F to 122°F
- Rated Life: 50,000 hours
- Weight: 9.26 lbs
- Dimensions: 15.55 × 4.21 × 9.76 in
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL/cETL Listed
- Impact Rating: IK10
- Warranty: 5-year limited warranty
- Included: Built-in photocell
- Optional Accessories: Microwave sensor, emergency driver, remote control
