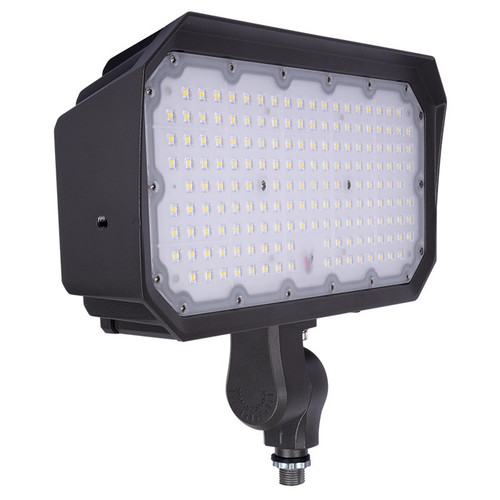

FDL150S/76/8C3/BZ-KNC High-Performance 7x6 Floodlight Knuckle Mount | Selectable Color Temperatures for Perimeter & Architectural Lighting
Built for reliable perimeter and architectural illumination, the NaturaLED 9702 knuckle-mount floodlight combines rugged durability with selectable output and color temperature settings to simplify stocking and installation. Its die-cast aluminum housing, IP65 protection, and DLC Premium listing deliver long-life performance and reduced maintenance for security, façade, and landscape lighting applications.
KEY FEATURES:
- Selectable Output & Color: Field-selectable wattages and CCT options let installers choose the ideal lumen output and tone on-site.
- Durable Construction: Die-cast aluminum housing with corrosion-resistant powder coat and borosilicate glass lens for long outdoor life.
- Weatherproof Performance: IP65 rated for wet locations and DLC Premium qualified for energy-efficient projects.
- Robust Electricals: 120-277V operation with 6KV surge protection and 0-10V dimming capability for adaptable control.
- Low Maintenance: Long 50,000-hour rated life and a 5-year limited warranty reduce service cycles and total cost of ownership.
APPLICATIONS:
- Ideal for perimeter security and site lighting at parking lots, loading docks, and building exteriors.
- Excellent for architectural accenting of facades, entryways, and landscape features.
- Suited for residential complexes, retail exteriors, and commercial property illumination.
- Installation Tip: Use the knuckle mount to precisely aim the NEMA 7x6 flood distribution for optimal coverage and minimized glare.
SPECIFICATIONS:
- Wattage: Selectable: 100W / 130W / 150W
- Lumens: 12,000 lm (100W), 16,900 lm (130W), 19,205 lm (150W)
- Color Temperature: 3000K / 4000K / 5000K (3CCT)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 6KV
- Beam Angle: NEMA 7x6
- Lens: Borosilicate Glass
- Material: Die Cast Aluminum
- Mount: Knuckle Mount
- IP Rating: IP65
- Rated Life: 50,000 hours
- Dimensions: 3.27 × 14.37 × 12.44 in
- Weight: 9.30 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, UL/cUL Listed
- Warranty: 5-Year Limited Warranty
- Finish: Bronze (RAL#8019)
