Description

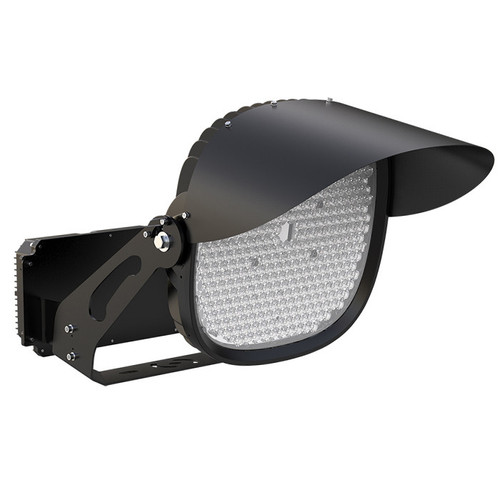

SPL17/800S/33/750/BK High-Output 17" Sports Luminaire | Daylight 5000K With Selectable Wattage And DLC Premium IP66 Housing
Purpose-built for large outdoor venues, this 17" sports luminaire delivers powerful, uniform Daylight output while reducing maintenance and energy costs. With field-selectable wattages and rugged IP66/IK08 construction, it adapts to a wide range of stadium, park, and municipal lighting needs for reliable performance night after night.
KEY FEATURES:
- Selectable Wattage: Choose 600W, 700W, or 800W in the field to match site lighting requirements.
- High Output: Produces up to 120,000 lumens for superior sports and large-area illumination.
- Durable Construction: IP66 and IK08 rated die-cast aluminum housing with polycarbonate diffused lens for wet, impact-prone environments.
- Energy & Rebate Ready: DLC Premium qualification helps maximize energy savings and rebate eligibility.
- Controls & Protection: 0-10V dimmable driver and 10kV surge protection for reliable operation.
- Included Mounting: Mount arm and shield are included for streamlined installation.
- Long Life & Coverage: 50,000-hour rated life with a 5-year limited warranty and low EPA (1.93 ft²) for reduced wind loading.
APPLICATIONS:
- Ideal for stadiums and athletic fields requiring uniform, high-output illumination.
- Well-suited for parks and municipal recreation areas where durable, weatherproof fixtures are needed.
- Use at universities and large campus venues to improve visibility and safety for spectators and athletes.
- Installation Tip: Mount between 40–70 ft for optimal uniformity and performance with the supplied mount arm.
SPECIFICATIONS:
- Wattage: Selectable 600W / 700W / 800W
- Lumens: 90,000 / 105,000 / 120,000 lm
- Color Temperature: Daylight 5000K
- CRI: 80
- Voltage: 120-277V
- IP Rating: IP66
- Lens: 3x3 NEMA Diffused Lens
- Beam Angle: NEMA 3x3
- Dimmable: 0-10V
- Surge Protection: 10kV
- EPA: 1.93 ft²
- Weight: 57.3 lbs
- Dimensions: 14.80 × 16 × 20.6 in
- Rated Life: 50,000 hours
- Warranty: 5-Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL Listed
- Impact Rating: IK08
- Color: Black
- Mounting: Mount arm and shield included; optional Type III/IV/V lenses available as accessories.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
