Description

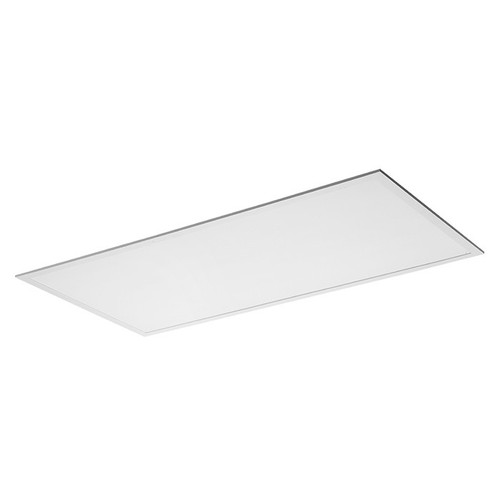

PNL/40SW/2X2/8CCT3 Back-Lit 2x2 Ceiling Panel | CCT Selectable Lighting For Offices, Schools, And Conference Rooms
The NaturaLED FXPNL40SW 2'x2' Back-Lit Flat Panel offers uniform, edge-to-edge illumination with field-selectable CCT and wattage to simplify retrofits and reduce maintenance in commercial interiors. Its low-profile design and selectable output provide installers and facility managers flexibility to optimize light levels and color without stocking multiple SKUs.
KEY FEATURES:
- CCT Selectable: Field-selectable 3500K / 4000K / 5000K for consistent color tuning on-site.
- Wattage Selectable: Choose 20W, 30W, or 40W to balance lumen output and energy savings.
- Uniform Light: Back-lit design delivers even illumination across the panel for low-glare performance.
- Controls Ready: 0-10V dimmable with 12V AUX for integration with building controls.
- Robust Electrical: 120-277V operation with >0.9 power factor and 2.5KV surge protection.
- Durable & Listed: DLC Standard, ETL/cETL listed and rated for damp locations.
APPLICATIONS:
- Ideal for offices and open-plan workspaces seeking uniform, low-glare lighting.
- Perfect for schools and classrooms where tunable CCT and adjustable output are beneficial.
- Well-suited for conference and meeting rooms that require flexible illumination levels.
- Installation Tip: Combine with 0-10V dimming controls to maximize energy savings and occupant comfort.
SPECIFICATIONS:
- Wattage: Selectable 20W / 30W / 40W
- Lumens: 2,200 lm (20W) | 3,300 lm (30W) | 4,400 lm (40W)
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V (with 12V AUX)
- Beam Angle: 115°
- Size: 2' x 2'
- Dimensions: 23.7" x 23.7" x 1.4" (603mm x 603mm x 35mm)
- Listings: DLC Standard, ETL/cETL Listed
- Location Rating: Damp Location
- Lifespan: 50,000 hours
- Warranty: 5 years
- Emergency Driver (Optional): BAEM8-PNL-50BC/MV-A (Model 7346) 8W emergency backup
- Master Carton Quantity: 2 pcs
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL/cETL Listed
- Energy Listing: DLC Standard
- Warranty: 5-year limited warranty
