Description

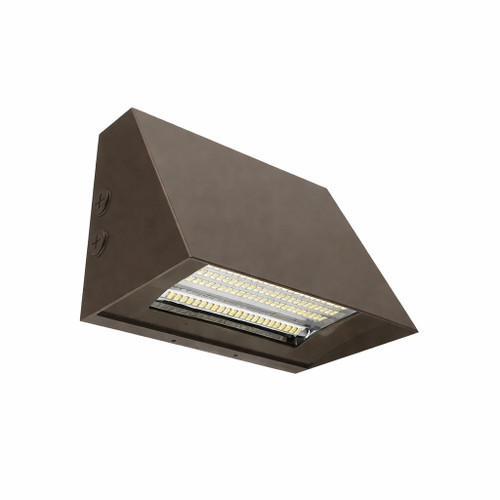

CWP40S/BS/8C3/BZ-PHO Full Cut-Off Outdoor Wall Fixture | CCT Selectable 3CCT For Perimeter, Pathway, And Security Lighting
Engineered to replace legacy wall packs, the NaturaLED 9818 delivers flexible, energy-saving illumination with selectable wattages and color temperatures to match perimeter, pathway, and entryway lighting needs while minimizing maintenance and energy costs.
KEY FEATURES:
- Selectable Output: Field-selectable 25W / 30W / 40W with corresponding lumen outputs of 3,500 / 4,200 / 5,600 lm.
- CCT Selectable: 3CCT field-adjustable between 3000K, 4000K, and 5000K to tune color for different applications.
- High Efficacy: Delivers approximately 140 LPW for energy-efficient performance.
- Robust Outdoor Design: IP65 rated, full cut-off optics, bronze (RAL 8019) finish with IK08 impact rating.
- Controls Ready: Built-in photocell; 0-10V dimmable driver and optional PIR sensor accessory for adaptive control.
- Electrical Reliability: 120-277V input, >0.9 power factor, THD <20%, and 4kV surge protection.
- Long Life & Warranty: 50,000 hour rated life with a 5-year limited warranty; DLC Premium and UL Listed.
APPLICATIONS:
- Perimeter and building exterior lighting for commercial and industrial properties.
- Walkways, pathways, and entryway illumination for multi-family and campus environments.
- Loading docks, service areas, and security zones requiring full cutoff optics.
- Installation Tip: Use the integral photocell for dusk-to-dawn operation and add the optional PIR sensor for motion-adaptive energy savings.
SPECIFICATIONS:
- Wattage: Selectable 25W / 30W / 40W
- Lumens: 3,500 lm / 4,200 lm / 5,600 lm
- Efficacy: 140 LPW
- Color Temperature: 3000K / 4000K / 5000K (3CCT)
- CRI: 70
- Voltage: 120-277V
- Dimmable: 0-10V
- Photocell: Included
- IP Rating: IP65
- Mounting: Wall Mount
- Finish: Bronze (RAL 8019)
- Rated Life: 50,000 hours
- Warranty: 5-year limited warranty
- Listings: DLC Premium, UL Listed
- Surge Protect Level: 4KV
- Power Factor: >0.9
- THD: <20%
- Input Current: 0.35 A
- Dimensions (W x H x D): 8.3" (211 mm) x 6.69" (170 mm) x 5.43" (138 mm)
- BUG Rating: B2 U0 G1
- IK Rating: IK08
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC Premium, UL Listed
- Finish/Environment: Bronze finish; suitable for outdoor damp and wet locations (IP65).
- Accessories: Integral photocell included; PIR motion sensor available as an optional accessory.
