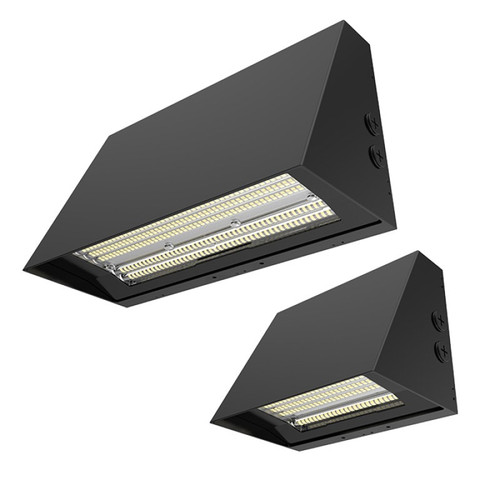

CWP40S/BS/8C3/BK-PHO Commercial Cut-Off Wall Pack | Soft White • Cool White • Daylight Options | Multiple Wattages, IP65 Rated
Engineered for reliable perimeter and security illumination, the NaturaLED 9820 full cut-off wall pack delivers field-selectable light output and color temperature to match site-specific needs while minimizing maintenance and energy costs. Its durable, weatherproof housing and integrated controls simplify retrofit and new-install projects for commercial exteriors.
KEY FEATURES:
- Selectable Wattages: 25W / 30W / 40W field-selectable to balance energy use and delivered light.
- Field-Adjustable CCT: Switch between Soft White 3000K, Cool White 4000K, and Daylight 5000K onsite for application-specific color.
- Durable Outdoor Design: IP65 and IK08 rated housing in Black (RAL 9005) for wet-location perimeter and security lighting.
- Controls & Performance: 0-10V dimming, integrated photocell, 4 kV surge protection, and 120–277V universal input.
- Trusted Reliability: Rated for 50,000 hours with a 5-year warranty and DLC Premium / UL listings.
APPLICATIONS:
- Ideal for building perimeters, exterior walkways, and loading dock areas requiring secure, long-lasting illumination.
- Commercial and retail exteriors seeking low-maintenance, high-efficacy outdoor lighting.
- Parking lot perimeters and service entrances where wet-location rated fixtures are required.
- Tip: Enable the integrated photocell for dusk-to-dawn operation and add the optional PIR sensor accessory for motion-activated control.
SPECIFICATIONS:
- Wattage: 25W / 30W / 40W (Field Selectable)
- Lumens: 3,500 lm / 4,200 lm / 5,600 lm
- Efficacy: 140 lm/W
- Color Temperature: Soft White 3000K • Cool White 4000K • Daylight 5000K
- CRI: 70
- Voltage: 120–277V
- Dimming: 0-10V
- Photocell: Included
- IP Rating: IP65
- IK Rating: IK08
- Rated Life: 50,000 hours
- Warranty: 5 Year
- Listings: DLC Premium, UL Listed
- Color / Finish: Black (RAL 9005)
- Dimensions (W × H × D): 8.3" × 6.69" × 5.43" (211 × 170 × 138 mm)
CERTIFICATIONS & ADDITIONAL NOTES:
- Surge Protection: 4 kV
- Input Current: 0.35 A
- Operating Temp: -40°F to 122°F
- Storage Temp: -40°F to 176°F
- Accessories: Optional PIR motion sensor accessory; external 12V AUX available
