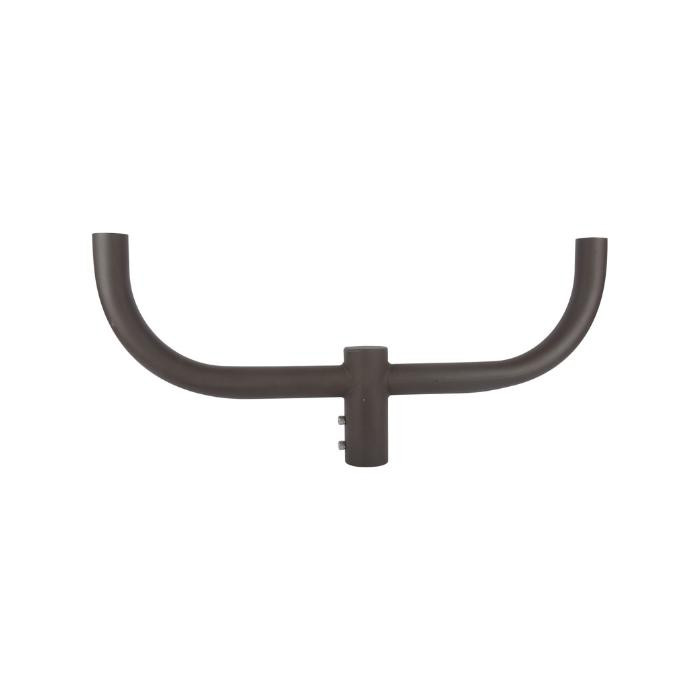

MT-2.5RTBV2.5-2180/BZ 2.5-Inch Round Tenon Bullhorn Bracket for Outdoor Fixtures | Daylight (5000 K) | 110 lb Capacity
Engineered to simplify robust pole-mounted lighting installations, this naturaLED bullhorn bracket offers a secure 2.5" tenon interface for dual-head fixtures, reducing installation time while providing dependable outdoor support for commercial and municipal lighting.
KEY FEATURES:
- Rugged Support: Designed for a 2.5" round tenon to securely mount twin luminaires in a 180° bullhorn configuration.
- High Load Capacity: Rated for 110 lbs (50 kg) maximum allowable load per tenon for dependable fixture support.
- Compact Footprint: Low bracket EPA (1.1 ft²) minimizes wind loading and simplifies pole selection.
- Lightweight Construction: Bracket weight is 17.8 lbs (8.1 kg), easing handling and field installation.
- Finish Code Included: Model suffix "/BZ" indicates bronze finish for coordinated outdoor appearance.
APPLICATIONS:
- Ideal for roadway, parking lot, and campus pole-mounted lighting installations.
- Suitable for commercial and municipal outdoor fixtures requiring dual-head support.
- Well suited to retrofit projects upgrading existing tenon-mounted luminaires.
- Installation Tip: Verify pole and fixture tenon compatibility (2.5" tenon to 2-3/8" double-head interface) before mounting.
SPECIFICATIONS:
- Catalog Number: MT-2.5RTBV2.5-2180/BZ
- Item #: P10356
- Description: 2.5” Round Tenon Bullhorn Vertical to 2-3/8” Double Heads at 180°
- Tenon Size: 2.5”
- Double-Head Interface: 2-3/8” (double heads at 180°)
- Max Allowable Load Per Tenon: 110 lbs (50 kg)
- Bracket EPA, Max: 1.1 ft²
- Bracket Weight, Max: 17.8 lbs (8.1 kg)
- Finish: BZ (Bronze, per model suffix)
- Mount Type: Pole Mounting Bracket
