Description

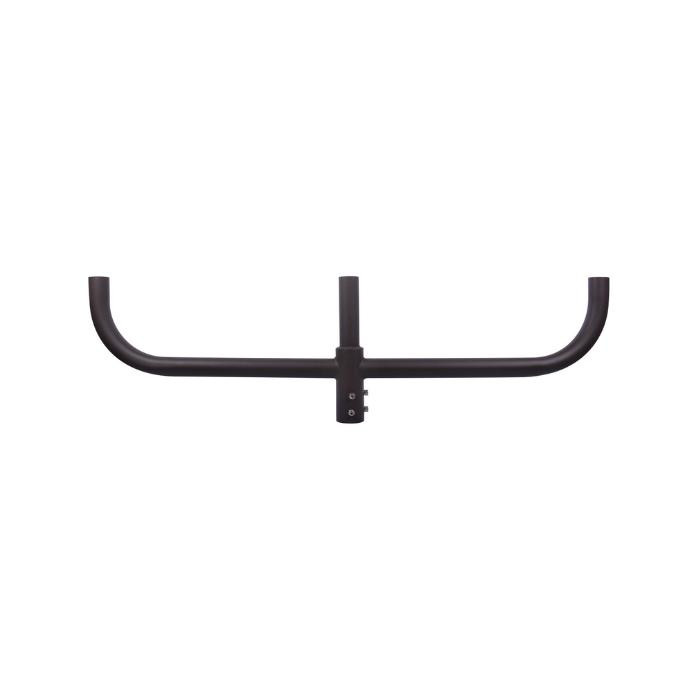

MT-2.5RTBV2.5-3120/BZ Heavy-Duty 2.5-Inch Round Tenon Bullhorn Pole Mount Bracket | For 2-3/8-Inch Fixtures | 110 lb Capacity
Engineered to provide a durable, low-maintenance mounting solution for multi-head pole fixtures, this naturaLED bracket streamlines installation and ensures reliable, long-term outdoor performance with a high per-tenon load rating.
KEY FEATURES:
- Configuration: Round 3 @ 120° for three-head layouts.
- Tenon Size: Fits 2.5" Round tenons.
- Compatible Head Mount: Interfaces with 2-3/8" double-head fixture mounting.
- High Load Capacity: 110 lbs (50 kg) max allowable load per tenon.
- Low Wind Profile: Bracket EPA (Max) 1.4 ft2 minimizes wind impact on poles.
- Robust Build: Bracket weight 27.7 lbs (12.6 kg) for stable, commercial-grade performance.
APPLICATIONS:
- Ideal For Roadway And Street Lighting Installations.
- Suitable For Parking Lot And Area Lighting.
- Well Suited To Campus, Facility, And Perimeter Lighting Projects.
- Usage Tip: Install On Standard 2.5" Tenons With Compatible 2-3/8" Luminaire Arms For Proper Alignment.
SPECIFICATIONS:
- Catalog Number: MT-2.5RTBV2.5-3120/BZ
- Item #: P10358
- Description: Round 3 @ 120°
- Tenon Size: 2.5"
- Compatible Head Mount: 2-3/8"
- Max Allowable Load Per Tenon: 110 lbs (50 kg)
- Bracket EPA (Max): 1.4 ft2
- Bracket Weight (Max): 27.7 lbs (12.6 kg)
