Description

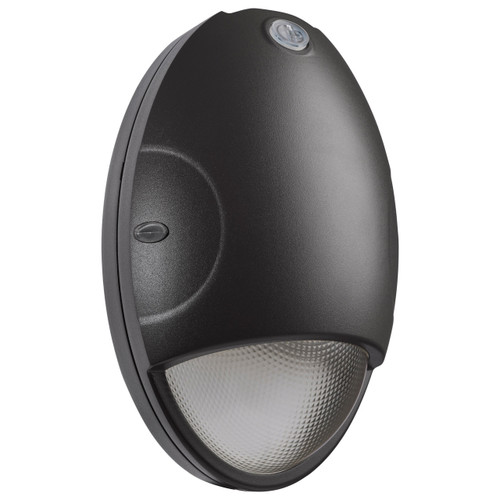

Oval Emergency Wall Pack With Photocell And Integrated Emergency Battery For Outdoor Perimeter And Security Lighting
Built for reliable perimeter illumination, this compact LED wall pack simplifies upgrades to exterior security lighting by combining selectable color temperature, an integrated emergency battery, and automatic photocell control for dependable, low‑maintenance performance.
KEY FEATURES:
- Integrated Emergency Battery: 5W emergency mode with 90 minute run time provides temporary illumination during power loss.
- Automatic Photocell: Built‑in photocell enables dusk‑to‑dawn operation to reduce manual switching and energy waste.
- CCT Flexibility: Selectable 3500K, 4000K or 5000K color temperatures to match site lighting and visual requirements.
- Weather‑Tough Construction: Die‑cast aluminum housing and IP65 rating deliver wet‑location durability for exterior use.
- Dimmer‑Ready Control: Supports 0–10V dimming for adaptable light levels and energy savings.
APPLICATIONS:
- Ideal for building exteriors and perimeter security lighting.
- Well suited for walkways, loading docks, and site illumination.
- Works for commercial, industrial, and multi‑family residential properties needing reliable emergency output.
- Usage Tip: Set the photocell for automatic night operation and use 0–10V controls to reduce light levels during late‑night hours.
SPECIFICATIONS:
- Wattage: 15W
- Lumens: 1740L - 1814L
- Color Temperature: 3500K / 4000K / 5000K
- CRI: 80+
- Voltage: 120V-277V
- Dimmable: Yes - 0-10V Dimming
- Hours Rated: 50,000
- IP Rating: IP65 (Wet Location)
- Battery Emergency Mode: 5W, 90 Minute Run Time
- Surge Protection: Built-in 2.5KV
- Power Factor: 0.9
- Total Harmonic Distortion: 15%
- Beam Angle: 100°
- Finish: Black
- Fixture Shape: Oval
- Lamp Type: Integrated LED
- Warranty: 5-Years
- Packaging: EA Quantity 1, Case Quantity 4
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Certified
- DLC: DLC Approved
- Location Rating: Suitable For Wet Locations
- Compliance Notes: FCC Compliant, RoHS Compliant, Title 20 Yes
