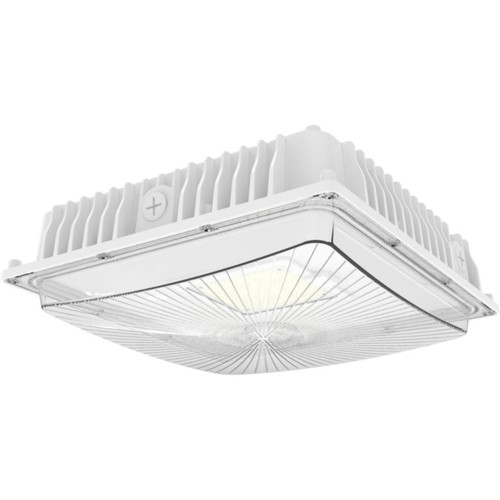

CSP-28-CS-U-WH Low-Profile Slim Canopy LED For Covered Outdoor Areas | CCT Selectable | High-Efficacy Low-Glare Illumination
Built for fast retrofit and new-install canopy applications, this slim Halco ProLED Select canopy delivers selectable color temperatures and high efficacy to reduce energy use and maintenance while improving uniform illumination in covered outdoor spaces.
KEY FEATURES:
- CCT Selectable: Field-selectable 3000K / 4000K / 5000K for flexible color tuning on-site.
- High Efficacy: Up to 135 LPW at 4000K for superior lumen output per watt and energy savings.
- Wet-Rated Durability: IP65 housing and polycarbonate lens for reliable performance in wet locations.
- Universal Voltage: Designed for 120-347VAC to simplify inventory and installation.
- Low-Profile Design: Slim, die-cast aluminum housing with integral heat sink for easier mounting in tight canopies.
- Integrated Protection: Built-in 4kV surge protection for improved system resilience.
- 0-10V Dimming: Smooth dimming control for energy management and occupant comfort.
APPLICATIONS:
- Exterior canopies
- Parking garages
- Carports
- Usage Tip: Best used in covered outdoor locations to provide uniform canopy illumination and reduce maintenance cycles.
SPECIFICATIONS:
- Wattage: 28W
- Lumens: 3000K - 3,500 lm; 4000K - 3,780 lm; 5000K - 3,640 lm
- Efficacy: 3000K - 125 LPW; 4000K - 135 LPW; 5000K - 130 LPW
- Color Temperature: 3000K, 4000K, 5000K (CCT Selectable)
- CRI: >70
- L70 Lifetime: >100,000 Hrs at 25°C
- Voltage: Universal 120-347VAC
- Amperage: 120VAC (0.23A); 277VAC (0.10A)
- Power Factor: >.90
- Dimming: 0-10VDC Dimming
- Surge Protection: 4kV
- Housing: Die-cast aluminum with powder coated finish
- Lens: Polycarbonate Lens
- Operating Temperature: -40°C to 55°C
- Listings: cULus, DLC Premium, FCC
- Environment: UL Listed for Wet Location; IP65
- Weight: 5.04 lbs
- Warranty: 5 Years Standard
- Replacement: 150W MH
